Y-axis NC Turret

The Y-axis turrets are constructed flat, They are powered by a servomotor with belt and ball screw spindle. Y-axis turret can greatly improve the machining activity of complex workpiece and improve the machining accuracy of many machining engineering parts,
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Working Principles and Characteristcs

The Y-axis turret are constructed flat, They are powered by a servomotor with belt and ball screw spindle. Y -axis turret can greatly improve the machining avility of complex workpiece and improve the machining accuracy of many machining engineering parts,

  • The rotating and dividing of power cutter-head adopts the servo moto.

  • Suitable for use on turning machings for forward and reveres machineing.

  • Fast tool change without change error high effciency.

  • Triple plate clutch structure assures accurate position.

  • High rigidity , and good reliability.


No. Iteam
DY12 DY16
1 No. of working position
12 12
2 Perm. Tangential load (turret locked) KNm 0.75 1.7
3 Indexing accuracy
±4" ±4"
4 Repeatability accuracy
±2" ±2"
5 Time for 30° ratation and clamping s 0.1 0.12
6 Without accelerating and braking per additional partial step s 0.06 0.07
7 Turret unlocked or laocked s 0.11 0.12
8 Perm. Indexing frequency (median switching angle ) /Min 25 20
9 Max. unbanlanced load torque Nm 16 32
10 Hydraulic operating pressure Mpa 5 5
11 Operating perssure for cooling lubricant Mpa 2.5 2.5
12 Power-drive


13 Tool and motor transmissing gear ratio
1:1 1:1
14 Tool shank specifications
BMT40 BMT45/BMT55
15 Max.tool speed rpm 6000 6000
16 Y axis function


17 Gear ratio
2 2
18 Maximum allowable feed speed m/min 10 10
19 Allowable feed stroke mm ±30 ±50
20 Positioning accurancy μm 10 10
21 Weight kg 150 300


Q: Are you a factory or tading company?

A: We are an integration of factory and trade.


Q: What payment service do you offer?

A: We offer T/T, Paypal,Western Union,Cash.


Q: What is your term of delivery?

A: We accept EXW, FOB, CFR, etc. You can choose the one which is the most convenient or cost-effective for you.


Q: How long is your delivery time?

A: Generally it is 7-10 days if goods are in stock, otherwise it is usually 20-30 days, it is according to your order quantity.


Previous:
Next:
turret tool post tool holder

RELATED PRODUCTS

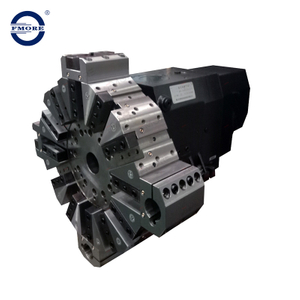

Servo NC Turret
