Design
The Servo Turret represents a pinnacle of modern machining technology, boasting a design that combines cutting-edge engineering with robust construction. At its core, the turret's body is typically fabricated from high-grade alloy materials, such as hardened steel or aluminum alloy. This choice of material provides exceptional strength and rigidity, enabling the turret to withstand the dynamic forces generated during high-speed machining operations while minimizing vibrations that could compromise precision.

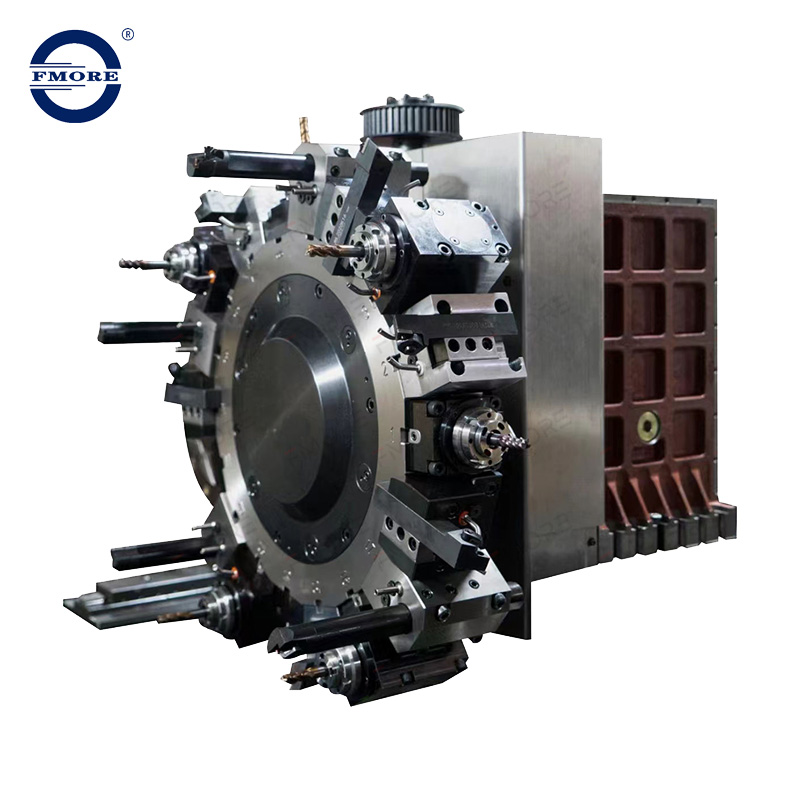

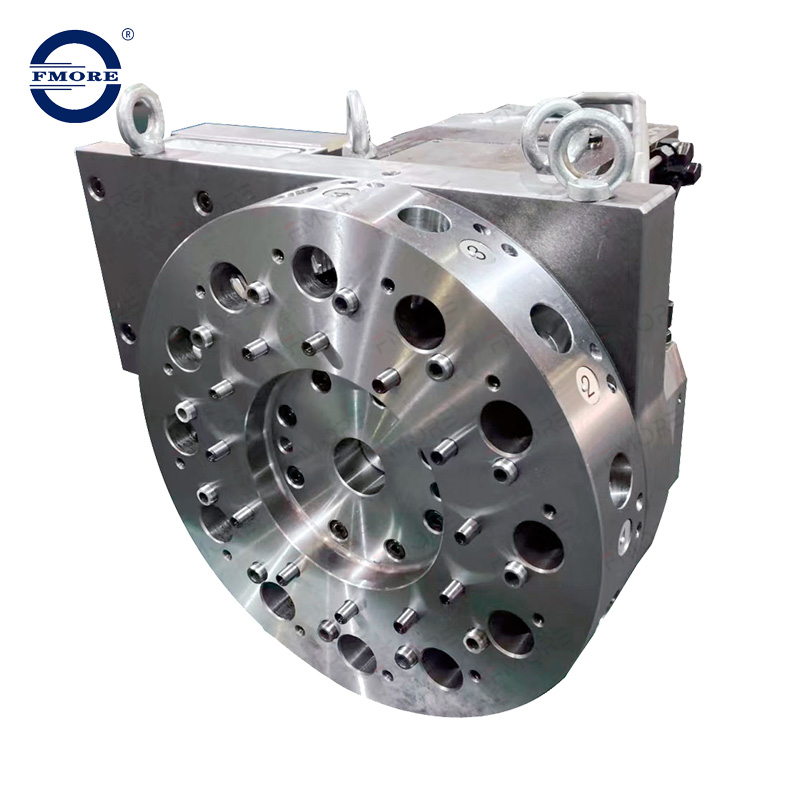

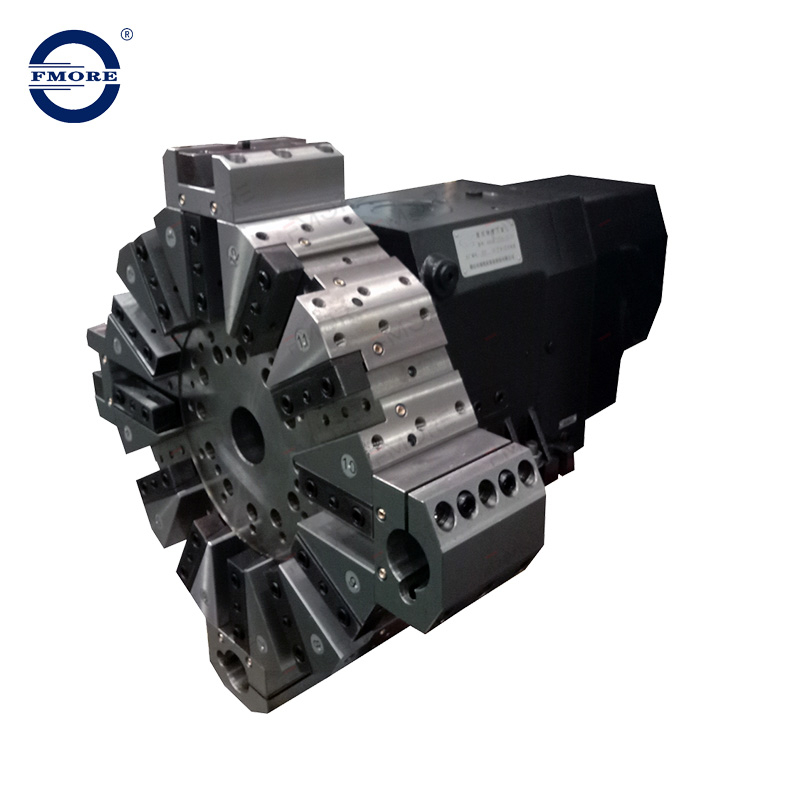

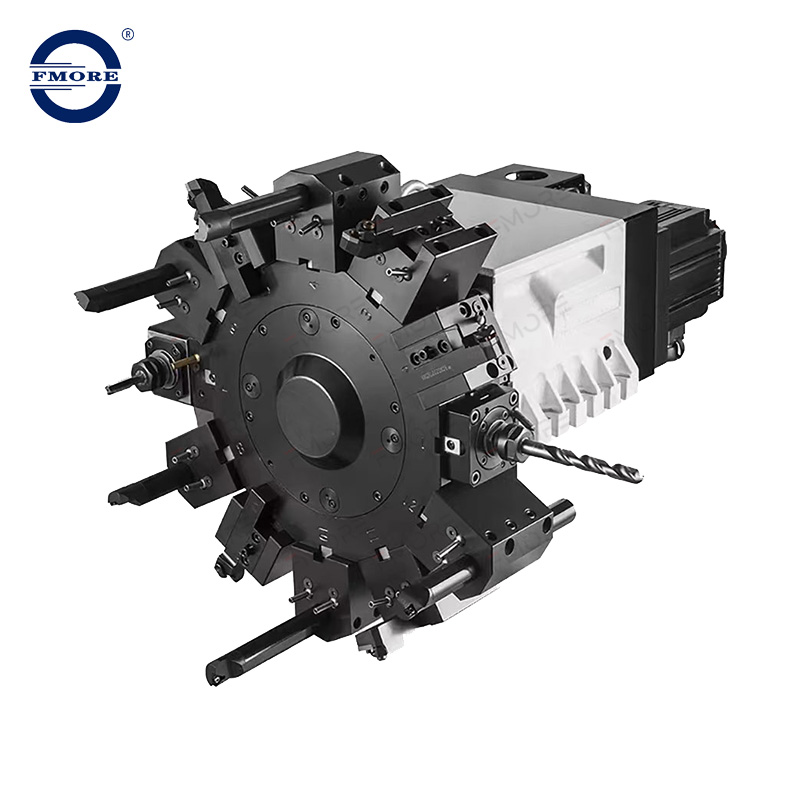

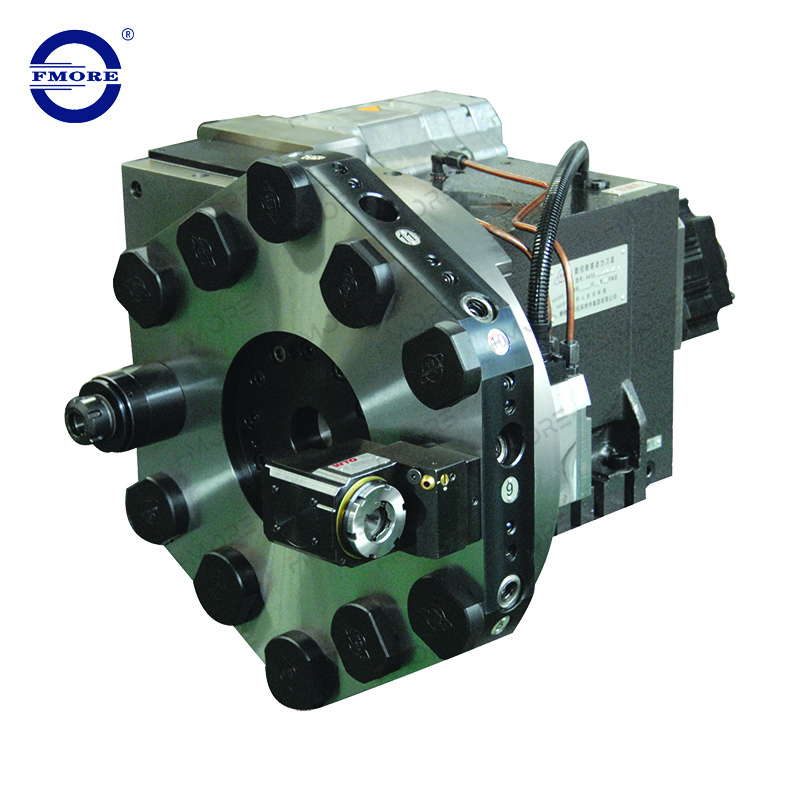

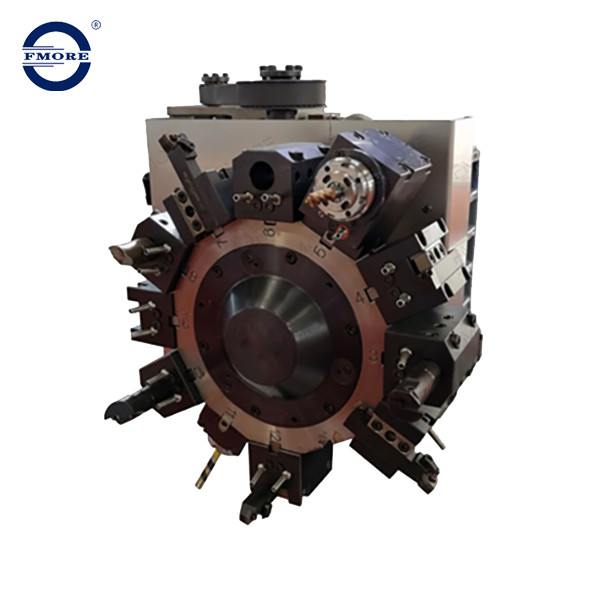

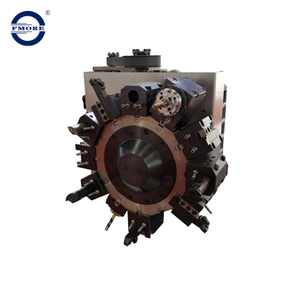

The turret head is a crucial component, housing multiple tool stations. These stations are meticulously arranged in a circular pattern, allowing for quick and seamless tool changes. Each tool station is designed to securely hold a variety of cutting tools, including drills, end mills, and turning tools. The tool clamping mechanism is engineered with precision, often utilizing advanced hydraulic or mechanical locking systems to ensure that the tools remain firmly in place even under heavy cutting loads.
The servo drive system is the heart of the servo turret, setting it apart from traditional turrets. It consists of high-performance servo motors, precision gearboxes, and advanced control electronics. The servo motors provide precise and rapid rotational motion to the turret head. These motors are capable of extremely accurate positioning, often achieving positional accuracies within micrometers. The precision gearboxes further enhance the smoothness and accuracy of the motion transmission, reducing backlash and ensuring consistent performance. The control electronics play a vital role in coordinating the operation of the servo motors, receiving signals from the machine's control system and translating them into precise movements of the turret head.
In addition, the servo turret may feature a variety of sensors, such as position encoders and temperature sensors. Position encoders continuously monitor the position of the turret head, providing real-time feedback to the control system for accurate positioning and error correction. Temperature sensors help to monitor the operating temperature of critical components, ensuring that they remain within the optimal range and preventing overheating, which could lead to performance degradation.
Advantage
One of the most significant advantages of the Servo Turret is its unparalleled precision. The servo drive system enables extremely accurate tool indexing, allowing for the machining of parts with tight tolerances. This precision is crucial in industries such as aerospace, automotive, and medical device manufacturing, where even the slightest deviation can have a significant impact on the performance and functionality of the final product. For example, in the production of aerospace engine components, the servo turret's precision ensures that the parts fit together perfectly, enhancing the efficiency and reliability of the engine.
Another key advantage is its high speed and efficiency. The servo motors' rapid response and high rotational speeds enable quick tool changes, reducing the overall machining cycle time. In high-volume production environments, this translates into a substantial increase in productivity. The smooth and continuous operation of the servo turret also reduces the wear and tear on the cutting tools, extending their lifespan and reducing tool replacement costs.
The flexibility of the Servo Turret is also a major benefit. With multiple tool stations, it can accommodate a wide range of cutting tools, enabling the performance of various machining operations in a single setup. This eliminates the need for frequent manual tool changes and setups, saving both time and effort. It also allows for the machining of complex parts with diverse features, such as drilling, milling, turning, and tapping, without the need for additional equipment or complex fixturing.
Furthermore, the advanced control electronics of the servo turret enable seamless integration with modern CNC (Computer Numerical Control) systems. This integration allows for automated programming and operation, making it easier to perform complex machining tasks and ensuring consistent results across multiple parts.
Applications
In the aerospace industry, the Servo Turret is widely used for machining critical components such as turbine blades, compressor disks, and landing gear parts. The high precision and reliability of the turret are essential for producing parts that meet the stringent quality standards of this industry. For example, turbine blades require intricate shaping and precise hole drilling, which the servo turret can achieve with ease.
In the automotive manufacturing sector, it plays a vital role in the production of engine components, transmission parts, and other precision parts. The ability to quickly change tools and perform multiple operations in a single setup helps to improve production efficiency and reduce costs. For instance, when machining engine blocks, the servo turret can handle a variety of operations, such as boring, milling, and tapping, in a highly efficient manner.
The medical device industry also benefits greatly from the Servo Turret. The production of medical implants, surgical instruments, and other precision medical components requires high precision and cleanliness. The servo turret's ability to maintain tight tolerances and its smooth operation make it an ideal choice for machining these delicate parts.
In addition, the servo turret finds applications in the mold and die making industry, where it is used to produce complex mold cavities and cores with high accuracy. It is also used in general machining workshops for a wide range of tasks, from small-scale prototyping to large-scale production of mechanical parts.
