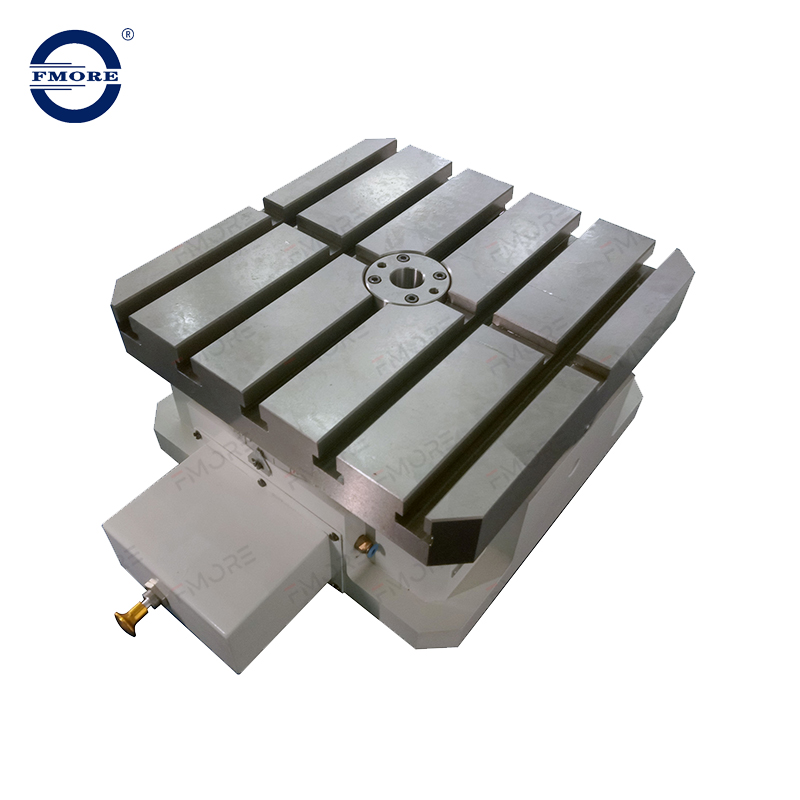

Balancing rapid cycle times with uncompromising, repeatable accuracy remains a daily engineering challenge on the shop floor. You face this exact hurdle when machining multiple workpiece sides, managing arrays of small parts, or operating automated assembly environments. Specifying the wrong workholding equipment introduces immediate financial and operational risks. Over-engineering by choosing complex, servo-driven tables for simple tasks wastes capital. Under-speccing with inadequate indexing methods leads to tolerance stack-up, scrapped parts, and severe tool chatter. A Pneumatic Indexing Table provides a highly rigid, cost-effective solution for specific fixed-position applications. We will evaluate how this equipment aligns with your payload, precision, and automation requirements. You will learn exactly when to deploy pneumatic power over servo alternatives to maximize machining efficiency without sacrificing accuracy.
Application Fit: Pneumatic indexing tables excel in fixed-position, high-rigidity applications where continuous variable positioning is unnecessary, offering a lower overall expense than servo alternatives for both machining and partially automated systems.
Mechanical Rigidity: The integration of a Hirth coupling rotary table mechanism—or robust detent systems for lighter loads—is critical for achieving sub-arc-second repeatability and eliminating backlash under heavy machining loads.
Infrastructure Dependency: Reliable performance and clamping torque are strictly dependent on consistent, clean shop air infrastructure and proper pneumatic valve maintenance.
Sizing Imperative: Successful implementation requires calculating not just the static payload, but the dynamic moment of inertia, multi-part fixturing weights, and cutting forces applied during the machining cycle.
Understanding internal mechanics helps you apply these devices correctly on the shop floor. Linear air pressure converts into rotational torque through specific internal components. You must grasp these principles to troubleshoot indexing failures, optimize cycle times, and prevent catastrophic equipment damage during aggressive machining operations. The internal sequence dictates how fast you can move from one cutting operation to the next.
Most units utilize pneumatic cylinders paired with rack-and-pinion gears or pawl mechanisms. Shop air enters the primary cylinder at pressures typically ranging from 70 to 100 PSI. This air drives an internal piston forward with significant force. The linear motion of the piston engages the internal gearing to rotate the top plate. The system operates on a strict, sequential dual-action process. First, it indexes the plate to the desired angle. Second, a separate pneumatic circuit actuates the clamping mechanism to lock the plate securely into position.
Detent systems often establish these preset angles for standard, lighter-duty applications. They drop a hardened steel pin or wedge into a corresponding machined slot on the rotor. This mechanical hard-stop ensures the table stops at the exact same position every cycle. The accuracy relies entirely on the machining tolerances of the detent pin and the slot. Over time, aggressive indexing without proper deceleration wears down these pins, leading to positional drift. You must monitor this wear if your process demands tight true-position tolerances across multiple machined faces.
Heavy milling, drilling, or boring operations generate massive lateral and rotational forces. A standard detent pin will deflect under these extreme loads. This deflection causes immediate tool chatter, poor surface finish, and dimensional inaccuracies. This is where a Hirth coupling rotary table becomes absolutely necessary for heavy material removal.
A Hirth coupling features two face gears with precisely ground, tapered teeth. When the table receives the clamp command, pneumatic pressure forces these two face gears together. The tapered teeth mesh tightly, centering the table perfectly. This mechanical interlocking provides absolute positioning and prevents backlash entirely. The meshed teeth distribute cutting forces across the entire diameter of the coupling rather than isolating force on a single detent pin. This mechanism is mandatory for maintaining rigidity during aggressive machining. It guarantees the table remains immobile even when utilizing large face mills, heavy boring bars, or high-feed milling cutters in tough materials like titanium or Inconel.
You must match the table's capabilities to your specific production requirements. Pneumatic systems excel in certain environments but fall short in others. Evaluating your specific application prevents costly integration mistakes and ensures you achieve the required return on investment.
These systems are ideal for preset, equal-degree angles. Common configurations include 45°, 90°, and 180° increments. They thrive in repetitive batch production where the index angle never changes. You set the mechanical stops or order the specific Hirth coupling once, and the table repeats that motion indefinitely. This makes them perfect for machining square valve bodies, hex-shaped fittings, or standard cross-holes in cylindrical shafts.
However, you must acknowledge their limitations. They cannot perform complex, multi-axis interpolation. You cannot use them for continuous contouring operations like machining a cam profile or a turbine blade. If your part requires simultaneous rotation and milling, you need a full 4th-axis servo rotary table. Pneumatic tables lock into a fixed position before any cutting tool engages the material. The spindle must retract, the table indexes, the table clamps, and then the spindle approaches for the next cut.
Using a machine tool indexer allows you to work on multiple workpiece sides in a single setup. Consider machining a complex hydraulic manifold. Without an indexer, the operator must manually unclamp, rotate, and re-indicate the part for every side. This drastically increases part handling time and operator fatigue. It also introduces severe tolerance stack-up caused by repeated manual setups. An indexer eliminates these issues entirely. The part remains clamped in the fixture while the table exposes each face to the spindle.
You can also mount arrays of relatively small parts on a single platform using custom tombstones or trunnion fixtures. The table moves these parts through sequential work areas efficiently. You can load eight parts onto a square tombstone, machining two parts per face. This maximizes spindle uptime, allows for longer unattended machining cycles, and significantly reduces operator intervention. The machine runs continuously while the operator prepares the next batch of raw material.
You must evaluate required clamping torque against anticipated cutting forces. If cutting forces exceed the clamping torque, the table will deflect or spin out of position. This ruins part accuracy, scraps the workpiece, and often shatters expensive cutting tools. You calculate cutting force based on tool diameter, number of flutes, feed rate, depth of cut, and material hardness. You then compare this calculated force to the table's rated holding torque.
A pneumatic rotary table offers substantial holding power when equipped with a Hirth coupling. The clamping force is directly proportional to your shop air pressure. A drop in air pressure means a proportional drop in holding torque. Mechanical cam indexers might provide superior rigidity for extreme heavy-duty workholding scenarios where pneumatic pressure fluctuates wildly, but pneumatic systems remain the standard for most general machining applications provided the air supply is stable.
These devices serve well beyond the CNC mill. You can integrate them seamlessly into partially automated systems across the factory floor. They work perfectly for equipment buffers and swivel tasks on assembly lines. Separation tasks and automated inspection stations also benefit from their reliable, fixed-position indexing.
You often see them moving parts under automated vision systems, robotic screwdriving stations, or ultrasonic welding horns. Their simple actuation makes them easy to integrate with basic programmable logic controllers (PLCs). You do not need a sophisticated CNC control to run them. A simple 24V output from a PLC to a directional control valve is all it takes to index the table, making them highly versatile for custom machine builders and automation integrators.
Choosing between pneumatic and servo-driven systems comes down to complexity, speed requirements, and available infrastructure. You must weigh the mechanical simplicity against the need for variable positioning and high-speed indexing.
Pneumatic systems require a significantly lower upfront capital expenditure. They avoid the high costs of servo motors, absolute encoders, servo drives, and specialized feedback cables. Integration is also much simpler and cheaper. You trigger a pneumatic table using standard PLC outputs or spare CNC M-codes connected to simple directional solenoid valves. You supply a 24V signal to the valve, the spool shifts, air flows, and the table indexes.
Servo systems demand complex drive tuning. They require continuous feedback loops, dedicated drive amplifiers installed in the electrical cabinet, and extensive parameter configurations within the CNC control. You often have to pay the machine tool builder to unlock the 4th-axis option in the software. If your application only requires indexing at 90-degree intervals for basic face milling and drilling, paying for a full servo system wastes engineering resources and capital budget.
Air compressibility limits the indexing speed of pneumatic systems. Air acts like a spring, meaning acceleration and deceleration are less precise than electrical systems. Mechanical locking times also add fractions of a second to the cycle. The sequence of unclamping, rotating, and reclamping takes time. A servo-driven high precision rotary table indexes much faster. It accelerates and decelerates smoothly using optimized motion profiles programmed into the drive.
You must identify the threshold where a servo motor justifies its higher cost. This justification relies strictly on required cycle time reductions. If saving two seconds per index prevents a production bottleneck on a high-volume automotive line, the servo upgrade makes sense. If cycle time is not the primary constraint, or if the machining time far exceeds the indexing time, pneumatic systems offer superior reliability and a faster return on investment.
| Evaluation Metric | Pneumatic Indexing Table | Servo-Driven Indexing Table |
|---|---|---|
| Positioning Capability | Fixed, preset mechanical angles only (e.g., 45°, 90°) | Infinite, variable positioning via CNC programming |
| Control Integration | Simple M-code relays and directional solenoid valves | Complex drive tuning, parameters, and feedback loops |
| Indexing Speed | Limited by air compressibility and mechanical locks | High-speed, optimized acceleration and deceleration profiles |
| Holding Rigidity | Extremely high when paired with a Hirth coupling | Relies on servo holding torque or hydraulic brake systems |
| Maintenance Needs | O-ring replacement, air filtration, regular lubrication | Cable management, encoder cleaning, drive cooling maintenance |
| Initial Capital Cost | Low to moderate, minimal control upgrades required | High, often requires expensive CNC software options |
| Environmental Tolerance | Highly tolerant of coolant and chips if sealed properly | Sensitive to coolant ingress in cables and encoders |
Selecting the right unit requires a strict technical evaluation of your shop's capabilities and the table's specifications. You cannot rely on static payload numbers alone. You must dig into the engineering data to ensure the table survives your specific manufacturing environment.
Acceptable runout and indexing accuracy standards are measured in arc-seconds. A precision indexing table with a Hirth coupling routinely achieves sub-arc-second repeatability. This means the table returns to the exact same position cycle after cycle, ensuring your drilled holes and milled faces remain perfectly aligned.
You must consider long-term precision impacts. Thermal expansion from prolonged machining alters dimensions. If you mount large aluminum fixtures on the table, heat from aggressive milling will cause the fixture to expand, shifting the part zero. Air pressure fluctuations directly reduce clamping force and positional stability. If your shop air compressor cycles heavily, dropping from 100 PSI to 75 PSI before kicking back on, the table's holding torque will vary throughout the day. You must install localized air regulators to maintain consistent pressure at the machine.
You must interface the indexer with the machine tool's control unit for automated, unattended machining. This usually requires spare M-codes and available relay contacts inside the electrical cabinet. The CNC reads the M-code, closes a relay, and sends power to the pneumatic valve. You also need a confirmation signal back to the CNC. Proximity switches on the table confirm it is fully clamped before the CNC allows the spindle to move. Without this feedback loop, the machine might crash into an unclamped, rotating table.
Evaluate your machine envelope space constraints carefully. Check the physical footprint of the table against your maximum axis travel. Ensure the table and your largest fixture do not hit the sheet metal enclosures or the tool changer during operation. Confirm mounting orientations. Some tables work only in horizontal applications, while others support vertical mounting. Vertical mounting introduces gravity into the payload calculation, requiring more torque to lift the fixture during indexing.
Manufacturers state a specific locking force for their tables based on ideal conditions. You must meet the CFM (Cubic Feet per Minute) and PSI (Pounds per Square Inch) prerequisites to achieve this force. Starving the table of air volume causes sluggish indexing and weak clamping.
Clean, dry, and properly lubricated air is an absolute necessity. You must install a dedicated FRL (Filter, Regulator, Lubricator) unit directly upstream of the table. Moisture and debris cause internal seal degradation. This leads to inconsistent indexing, slow actuation times, and premature mechanical failure. If water enters the pneumatic cylinders, it washes away the factory grease, causes internal corrosion, and destroys the O-rings. A 5-micron filter and a properly adjusted lubricator will extend the life of the table by years.
Even the best equipment fails if implemented poorly. You must anticipate mechanical and maintenance risks before installing the unit on your machine. Proactive engineering prevents reactive downtime.
Oversized fixtures, unbalanced loads, or heavy multi-part arrays create massive shock loads during rotation. This risk leads to premature mechanical wear, indexing overshoot, or catastrophic failure of the internal rack-and-pinion. When a heavy fixture stops suddenly, the kinetic energy must dissipate somewhere. If the shock absorbers fail, the gear teeth take the full impact.
Calculate the mass moment of inertia prior to specification using the exact fixture dimensions and part weights.
Ensure the load center of gravity remains as close to the rotational axis as possible to minimize eccentric forces.
Utilize heavy-duty hydraulic shock absorbers to decelerate heavy loads smoothly before the mechanical hard-stop engages.
Design lightweight aluminum fixtures to reduce rotating mass while maintaining necessary workholding rigidity.
Balance asymmetric fixtures by adding steel or tungsten counterweights to the lighter side.
Program a slight dwell time in the CNC control to allow the table to settle completely before commanding the clamp cycle.
Pneumatic blow-by or seal failure causes a loss of clamping pressure during active machining. This risk leads directly to part rejection, severe chatter, or tool breakage. If the table unclamps while a face mill is engaged, the results are disastrous for the spindle and the workpiece.
Establish baseline preventative maintenance schedules based on actual machine cycle counts, not just arbitrary calendar days.
Inspect and replace internal O-rings, lip seals, and gaskets annually or every one million cycles.
Test pneumatic directional valves for internal leaks using ultrasonic leak detectors during routine downtime.
Maintain strict lubrication intervals for all moving components, using only the grease specified by the manufacturer.
Drain water traps on the FRL unit daily to prevent moisture ingress into the pneumatic lines.
Monitor clamping pressure using inline digital pressure switches tied directly to the CNC control's emergency stop circuit.
Clean the exterior of the table daily to prevent fine cast iron or aluminum chips from working under the rotary seals.
Consult with a workholding engineer to calculate your dynamic loads and moment of inertia accurately before purchasing.
Request a 3D CAD model from the manufacturer for machine envelope verification and collision detection in your CAM software.
Audit your current CNC control for available M-codes, relay contacts, and input terminals for clamp confirmation switches.
Install a dedicated, high-quality FRL unit at the machine to guarantee clean, lubricated air reaches the internal cylinders.
A: When equipped with a Hirth coupling, these tables routinely achieve sub-arc-second repeatability. Standard detent-style tables typically hold tolerances within a few arc-minutes, depending on the manufacturer, payload size, and operating air pressure.
A: No. They are designed strictly for fixed-position indexing. They index to a preset angle, lock into place, and hold the part stationary while the machine cuts. They cannot perform simultaneous rotation and milling.
A: A Hirth coupling uses two face gears with precisely machined teeth that mesh together during clamping. This mechanical interlocking eliminates backlash and distributes heavy cutting forces evenly across the entire diameter of the table.
A: Most industrial units require a consistent supply of clean, dry air between 70 and 100 PSI (5 to 7 bar). Dropping below the manufacturer's recommended pressure significantly reduces the table's clamping torque and indexing speed.
A: You integrate them using spare M-codes within the CNC control. The M-code triggers a relay, which sends a 24V signal to a directional solenoid valve. This valve directs shop air to the table's internal pneumatic cylinders.
