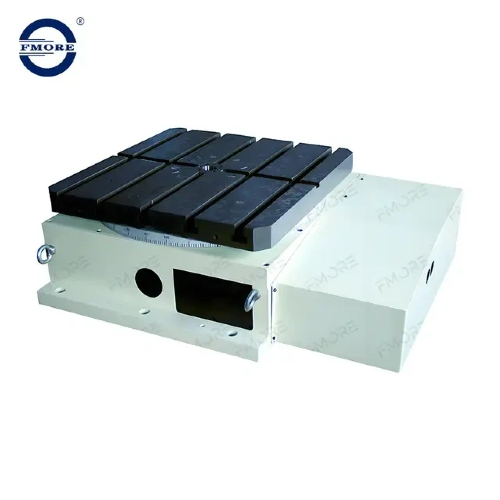

How Do Rotary Tables Work?

A Rotary Table is a precision mechanical device designed to rotate a workpiece around a fixed axis during machining operations. It is widely used in milling, drilling, boring, and CNC machining processes where accurate angular positioning or continuous rotational movement is required. While rotary tables may appear simple at first glance, their internal structure, drive mechanisms, and control logic are highly engineered to achieve accuracy, rigidity, and repeatability.

Understanding how a rotary table works is critical for machinists, engineers, and manufacturing decision-makers. The working principle of a rotary table directly affects machining accuracy, cycle time, surface quality, and overall production efficiency. Choosing or using a rotary table without fully understanding its operation can lead to improper application, reduced performance, or unnecessary wear.

This article provides a comprehensive explanation of how rotary tables work, covering their mechanical principles, key components, drive methods, CNC integration, and real-world machining applications. By the end of this guide, you will clearly understand why rotary tables are essential in modern manufacturing and how their working principles enable complex and precise machining.

Basic Working Principle of a Rotary Table

The fundamental purpose of a Rotary Table is to introduce controlled rotational motion into a machining process. This rotational motion allows a workpiece to be positioned at specific angles or rotated continuously while cutting operations are performed.

What Is the Main Function of a Rotary Table?

The main function of a rotary table is to rotate a workpiece accurately and repeatedly around a central axis. This rotation can be indexed (step-by-step) or continuous, depending on the machining requirement.

In practical terms, a rotary table allows:

Precise angular positioning for drilling, milling, or tapping

Multi-sided machining without removing the workpiece

Circular and curved surface machining

Improved consistency across multiple parts

By combining rotational motion with linear movements from a machine tool, a rotary table expands machining capability beyond simple straight-line operations.

How a Rotary Table Converts Motion into Precise Rotation

A rotary table works by converting input motion—manual force, electric motor power, or CNC-controlled servo movement—into smooth, precise rotation of the table surface.

This process typically involves:

Input power generation (manual handwheel, motor, or servo)

Transmission of motion through gears or drive mechanisms

Controlled rotation of the table plate

Positioning, locking, and holding during machining

The accuracy of this rotation depends on the quality of internal components, such as gears, bearings, and locking systems. High-quality rotary tables are engineered to minimize backlash, vibration, and positioning error.

Key Components of a Rotary Table and How They Work Together

A rotary table consists of multiple precision components that work together to ensure stable, accurate, and repeatable rotation.

Rotary Table Base and Housing

The base and housing form the structural foundation of the rotary table. Their primary role is to provide rigidity and stability during machining.

Key functions include:

Supporting the weight of the workpiece and tooling

Absorbing cutting forces and vibrations

Maintaining alignment between rotating and stationary components

A rigid base is essential for maintaining accuracy, especially when machining heavy or asymmetrical parts.

Rotary Table Drive System

The drive system is the heart of how a rotary table works. It transfers motion from the power source to the rotating table.

Common drive mechanisms include:

Worm gear and worm wheel systems

Gear-driven systems

Direct-drive (torque motor) systems

Each system has different characteristics in terms of accuracy, torque capacity, and speed. Worm gear drives are widely used because they offer high reduction ratios and good positioning accuracy.

Bearings and Load Support System

Bearings support the rotating table plate and ensure smooth, stable motion under load. They are responsible for handling:

Axial loads (vertical forces)

Radial loads (side forces)

Combined loads during cutting

High-precision bearings reduce friction and ensure consistent rotation, which directly impacts machining quality and tool life.

Clamping and Locking Mechanism

During machining, especially heavy cutting, the rotary table must remain rigidly positioned. Locking mechanisms prevent unwanted movement once the table reaches the desired angle.

Locking systems:

Improve rigidity

Increase cutting stability

Enhance surface finish

Some rotary tables feature hydraulic or pneumatic locking systems for fast and reliable clamping.

How Different Drive Methods Affect the Way Rotary Tables Work

The drive method determines how the rotary table generates and controls rotation.

Manual Rotary Table Working Principle

A manual rotary table is operated using a handwheel connected to the drive system.

Characteristics:

Rotation is controlled manually by the operator

Angular positioning is achieved using graduated scales or verniers

Simple structure and low cost

Manual rotary tables are suitable for tool rooms, prototyping, and low-volume machining where automation is not required.

Motorized Rotary Table Working Principle

Motorized rotary tables use an electric motor to drive rotation, typically controlled by switches or basic controllers.

Advantages:

Reduced manual effort

More consistent rotation speed

Suitable for semi-automatic machining

Motorized rotary tables are often used in production environments where repeatability is important but full CNC integration is not necessary.

CNC Rotary Table Working Principle

A CNC Rotary Table uses a servo motor controlled by a CNC system to achieve highly accurate and programmable rotation.

Key features:

Precise positioning through feedback systems

Integration with CNC programs

Support for complex multi-axis machining

CNC rotary tables enable advanced machining operations such as four-axis and five-axis machining, significantly expanding manufacturing capability.

How Rotary Tables Work in CNC Machining Centers

CNC machining centers rely heavily on rotary tables to perform complex operations efficiently.

Rotary Table as the 4th Axis

In CNC machining, a rotary table often functions as the fourth axis, complementing the X, Y, and Z axes.

The fourth axis:

Rotates the workpiece instead of the cutting tool

Allows machining of multiple faces in one setup

Reduces repositioning and setup errors

This capability is essential for producing complex parts with high dimensional accuracy.

Synchronization Between Rotary Table and Cutting Tool

In advanced CNC operations, the rotary table can rotate simultaneously with tool movement.

This synchronization enables:

Continuous contour machining

Helical milling

Smooth curved surface generation

The CNC controller coordinates linear and rotational movements to ensure precise tool paths.

Indexing vs Continuous Rotation in CNC Rotary Tables

CNC rotary tables operate in two primary modes:

• Indexing mode: The table rotates to a set angle and stops for machining.

• Continuous rotation mode: The table rotates smoothly during cutting.

Each mode serves different machining purposes and is selected based on part geometry and process requirements.

How Different Types of Rotary Tables Work

Rotary tables are available in various configurations to suit different machining needs.

How a Horizontal Rotary Table Works

A horizontal rotary table has a flat rotating surface mounted horizontally.

Working characteristics:

Excellent load-bearing capacity

Stable support for heavy workpieces

Suitable for milling and drilling operations

Horizontal rotary tables are commonly used in industrial production environments.

How a Vertical Rotary Table Works

A vertical rotary table is mounted so that the table surface is vertical.

Advantages:

Easier loading and unloading

Improved visibility of the workpiece

Suitable for precision machining

Vertical rotary tables are often used for smaller, high-precision components.

How a Tilting Rotary Table Works

A tilting rotary table combines rotation with angular tilting capability.

This allows:

Machining at compound angles

Greater flexibility in tool access

Support for five-axis machining setups

Tilting rotary tables are essential for aerospace, mold making, and complex part production.

How a Pneumatic Rotary Table Works

A pneumatic rotary table uses compressed air to generate rotation and indexing.

Key features:

Fast indexing speed

Simple structure

Suitable for automated assembly or light machining

Pneumatic rotary tables are commonly used in high-speed production lines where extreme precision is not required.

How Rotary Tables Improve Machining Accuracy and Efficiency

The working principles of rotary tables directly contribute to improved machining outcomes.

Reducing Repositioning and Setup Errors

By allowing multiple operations in a single setup, rotary tables:

Minimize manual handling

Reduce cumulative errors

Improve repeatability

This leads to more consistent part quality.

Improving Workflow and Production Speed

Rotary tables streamline machining processes by:

Reducing setup time

Enabling automation

Improving machine utilization

As a result, manufacturers can achieve higher throughput and lower production costs.

Common Machining Operations Enabled by Rotary Table Working Principles

The versatility of rotary tables allows them to support a wide range of machining operations.

Circular Milling and Contouring

Rotary tables enable smooth circular motion, making them ideal for:

Arc milling

Circular slot machining

Curved surface generation

Drilling and Tapping on Bolt Circles

With accurate indexing, rotary tables allow precise drilling and tapping of bolt patterns.

Multi-Sided Machining in One Setup

Rotary tables make it possible to machine multiple faces of a part without re-clamping, improving accuracy and efficiency.

Comparison Table: Rotary Table Types and Working Characteristics

Conclusion

Understanding how a Rotary Table works is essential for achieving optimal machining performance. From precision-engineered internal components and reliable drive systems to seamless CNC integration, every detail of a rotary table’s working principle directly influences machining accuracy, efficiency, and overall production capability. A well-designed rotary table allows manufacturers to handle complex geometries, reduce setup times, and maintain consistent quality across every part.

As machining applications continue to evolve toward higher precision, greater complexity, and increased automation, rotary tables will remain a fundamental element of modern manufacturing systems. Choosing the right rotary table—and applying it correctly—plays a critical role in controlling production costs, improving workflow efficiency, and ensuring long-term operational stability.

At YANTAI FORMORE MACHINERY CO., LTD., we focus on delivering high-quality rotary table solutions tailored to diverse machining requirements. With solid technical expertise, strict quality standards, and extensive industry experience, we work closely with our customers to provide reliable, efficient, and application-specific rotary table solutions. If you are looking to enhance your machining capability or need professional guidance in selecting the right rotary table, we welcome you to contact us and explore how we can support your manufacturing goals.

FAQ

How does a rotary table rotate the workpiece accurately?

A rotary table uses precision drive mechanisms and bearings to convert input motion into controlled rotation with high repeatability.

What is the difference between indexing and continuous rotation?

Indexing involves step-by-step rotation with stops, while continuous rotation allows smooth movement during cutting.

Do CNC rotary tables work differently from manual rotary tables?

Yes, CNC rotary tables use servo motors and control systems for automated, high-precision positioning.

How does a rotary table improve machining accuracy?

By reducing manual repositioning and ensuring consistent angular movement, rotary tables significantly improve accuracy.

Can rotary tables be used on any machine tool?

Rotary tables must be matched to machine size, load capacity, and control compatibility for optimal performance.
