Indexing Rotary Table

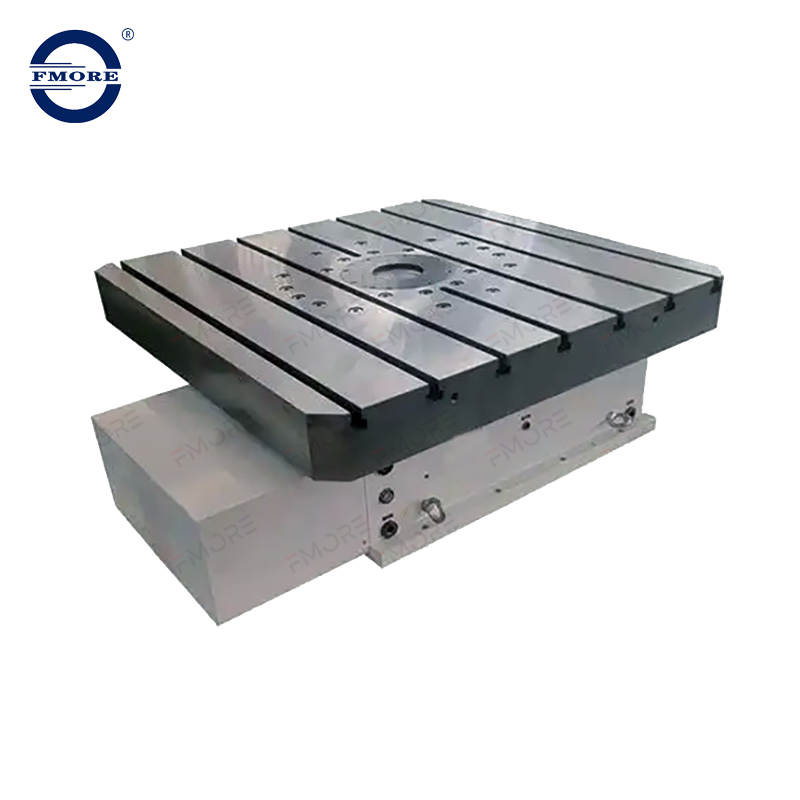

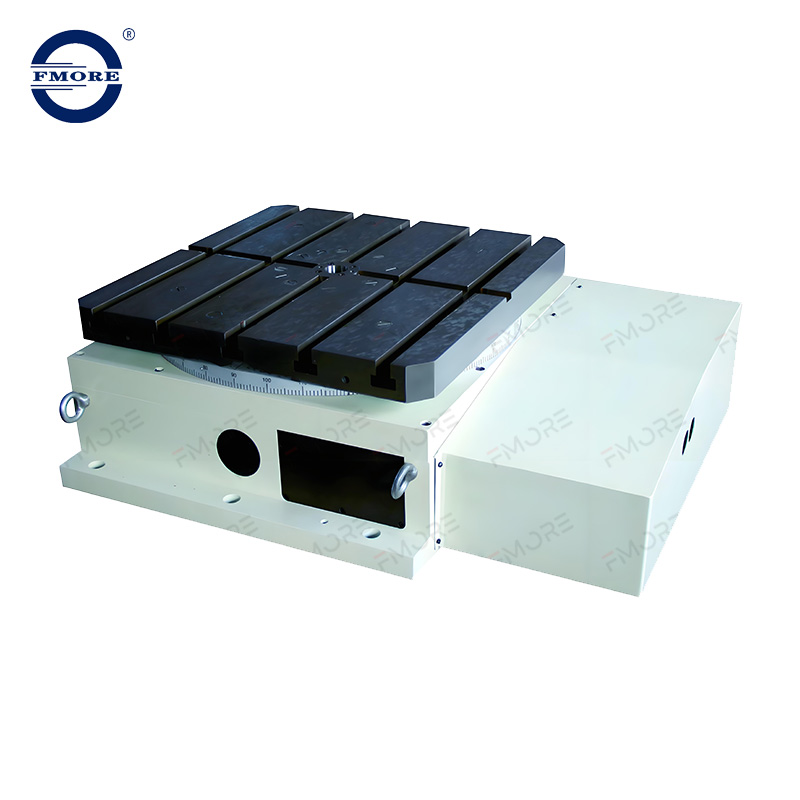

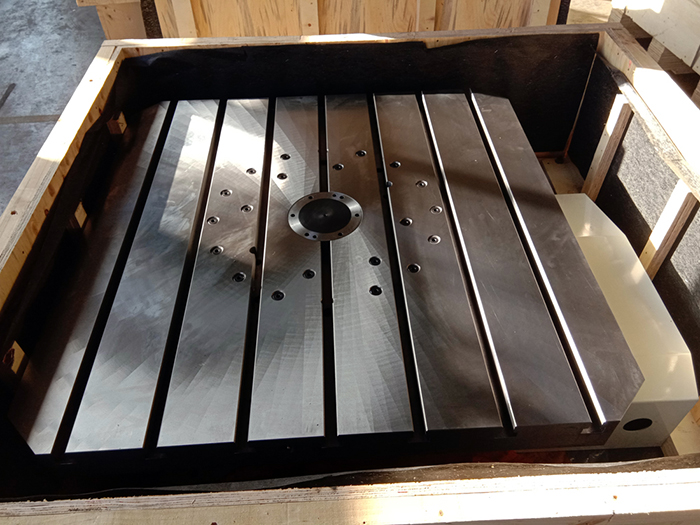

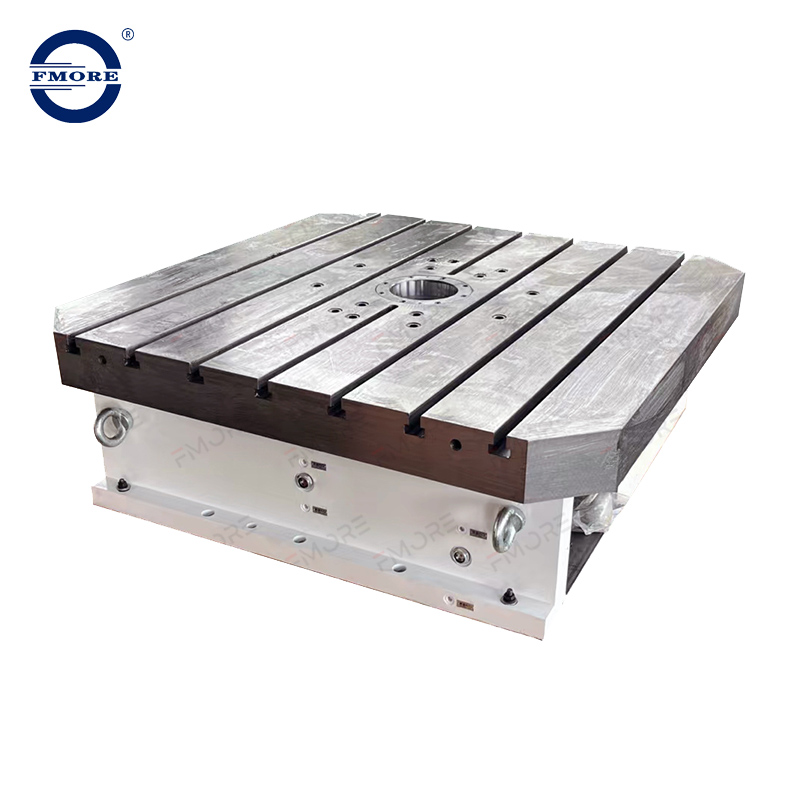

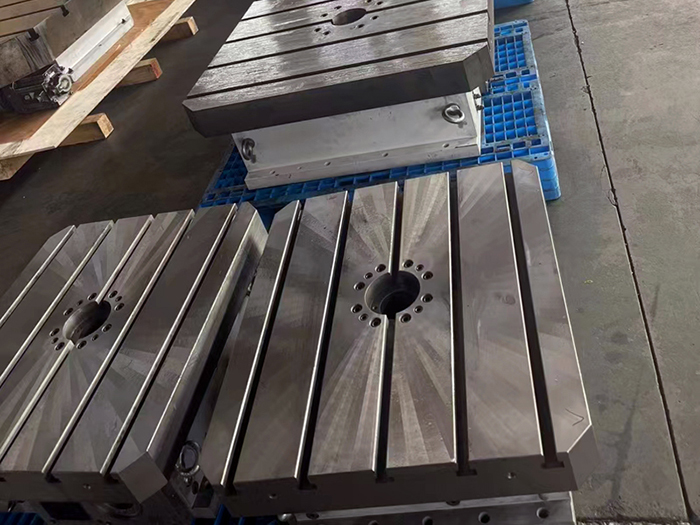

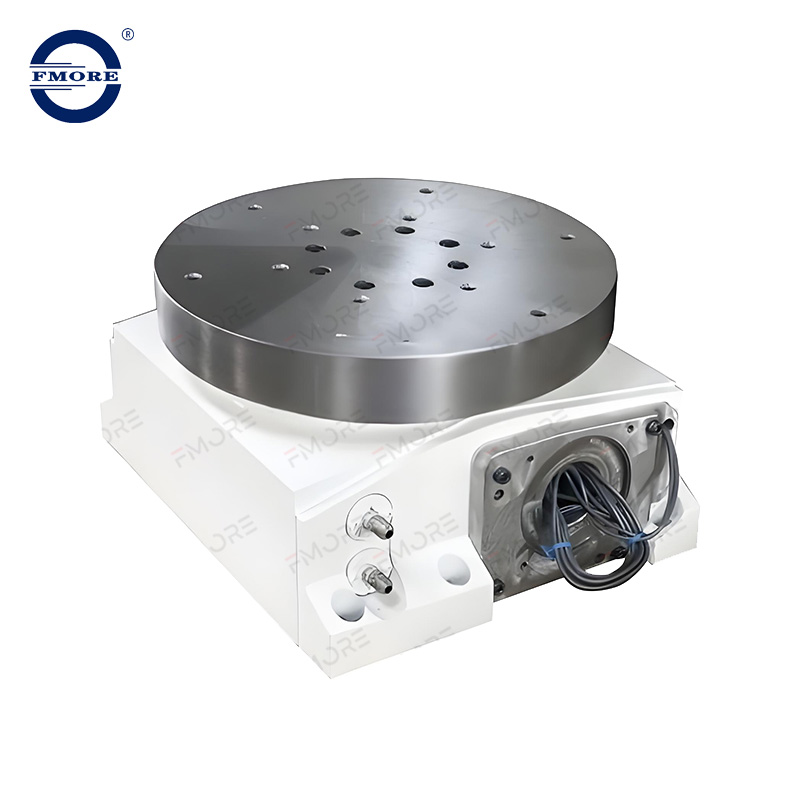

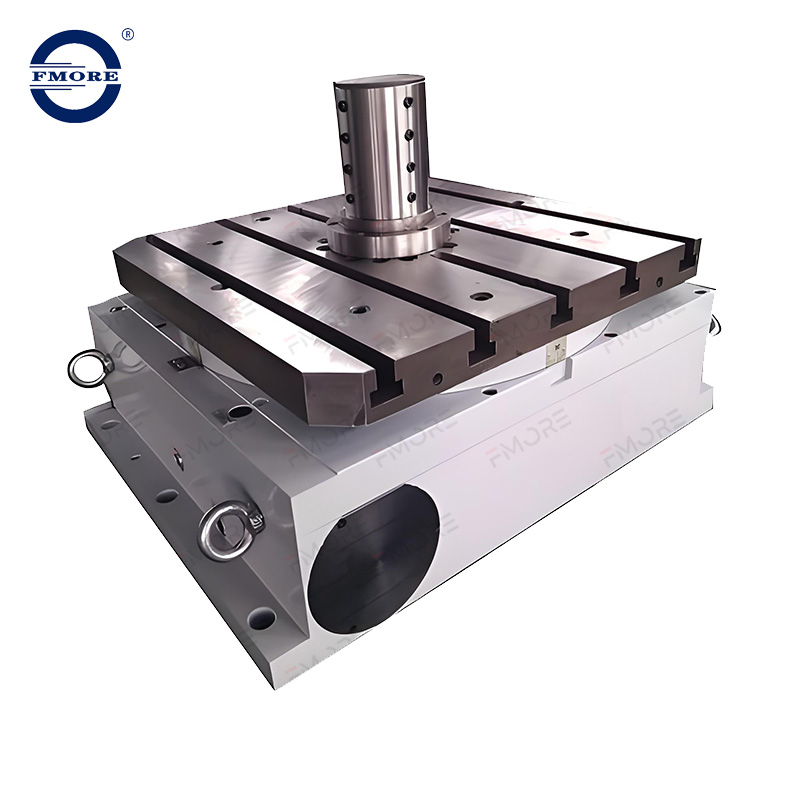

The horizontal NC indexing table is an ideal functional part of large size horizontal machine centers, floor type borng and milling machines. Used as the 4th axis, Its spindle is vertically installed on the table of the machine tools. The rotary table can complete all kinds of indexing rotating works under the control of the relevant control system of the host machines. Driven by servo motor, it can complete any indexing on the circumference of 360°.The face table can be equipped with plates, discs or other parts with complex shapes to realize the processing of equal and unequal holes, grooves or continuous curves.

Quantity:
Availability:





Inquire Add to Basket

Various table sizes: table diameter is from 500mm to 3000mm or with rectangular faceplate , also can be manufactured as per customer's requirement.
High accuracy and great durability: adapting a special anti-wearing alloy of bronze/nickel precision dual lead worm wheel and hardened steel worm shaft to ensure long term indexing accuracy.
High heavy loading capacity: special axial-radial roller bearings are incorporated to provide high rigidity.
Large braking torque: multi-brake disc system offers superior clamping force, insures smooth maching without deflection under heavy load.

Adapting 2pcs or 3pcs Hirth coupling for positioning, repeatability can reach 2 sec.Besides accuracy will not be changed over long time operation.

Indexing rotary table

RELATED PRODUCTS

content is empty!

Items	TK56800	TK561000
Table size mm	Φ800	Φ1000
Total thickness mm	380	405
Dia.of center hole mm	-	-
Total ratio	1:180	1:180
Min graduation angle	7.5°	7.5°
Servo motor torque Nm	18	18
Oil clamp pressure Mpa	3.5	3.5
Accuracy	6”	6”
Repeatability	2”	2”
Max.load (kg)	2500	4000

Items	TK56400X400	TK56500	TK56500X500	TK56500X600	TK56630X630	TK56630X630B	TK561000X1000
Table size mm	400X400	Φ500	500X500	500X600	630X630	630X630	1000X1000
Total thickness mm	310	310	310	295	300	380	425
Dia.of center hole mm	φ30H7	φ30H7	φ30H7	φ50H7	φ40H7	φ40H7	φ60H6
Total ratio	1:180	1:180	1:180	1:180	1:120	1:180	1:180
Min graduation angle	1°	7.5°	1°	1°	5°	1°/5°	7.5°
Servo motor torque Nm	12	12	12	12	12	11	18
Oil clamp pressure Mpa	2	2	2	3.5	3.5	3.5	4
Accuracy	10”	6”	10”	10”	6”	10”	6”
Repeatability	2”	2”	2”	4”	2”	4”	2”
Max.load (kg)	500	600	500	500	1250	1200	4000
