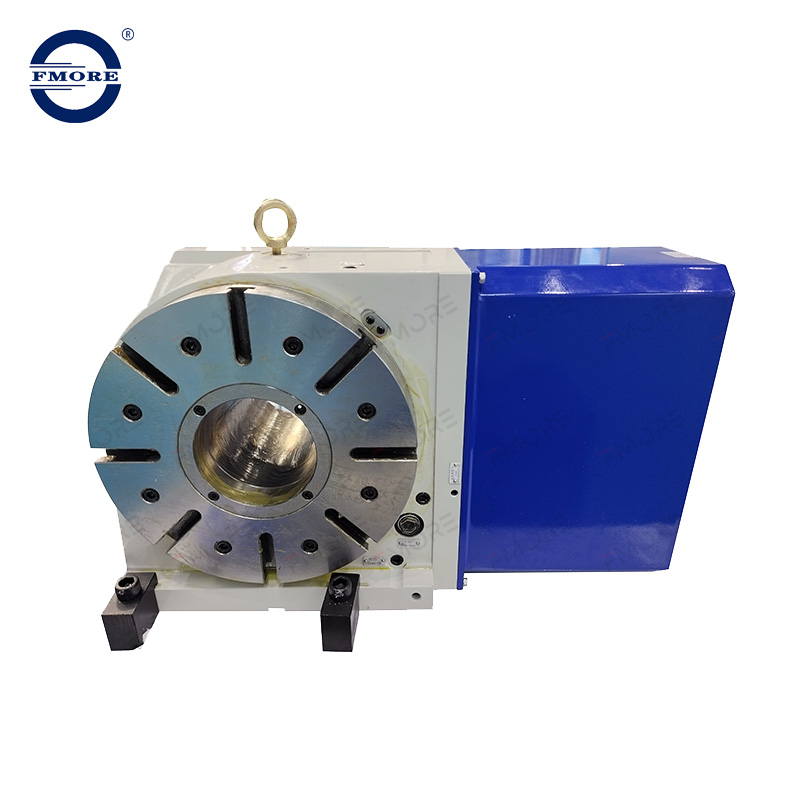

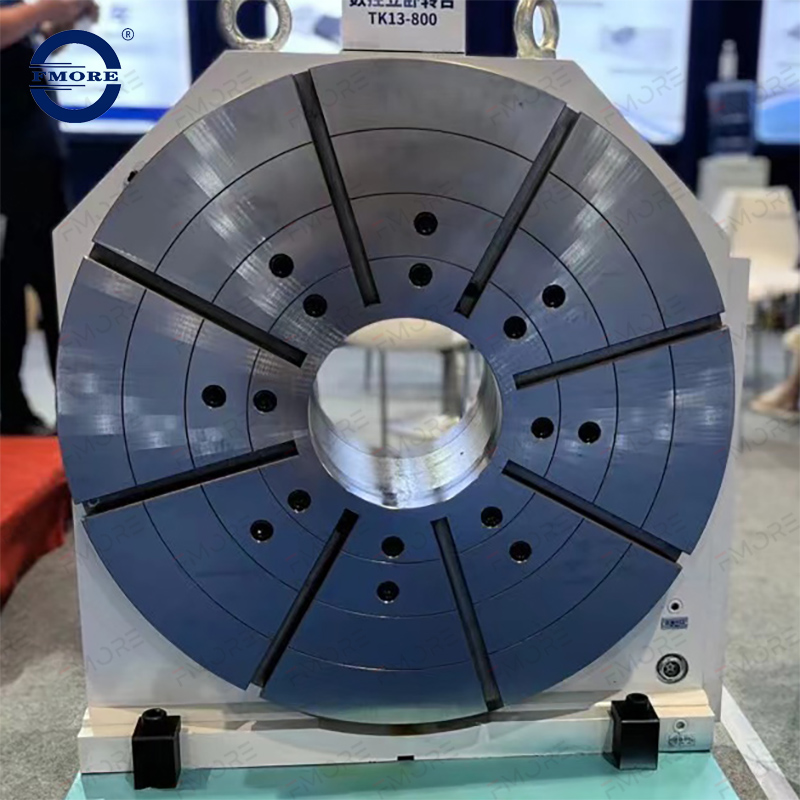

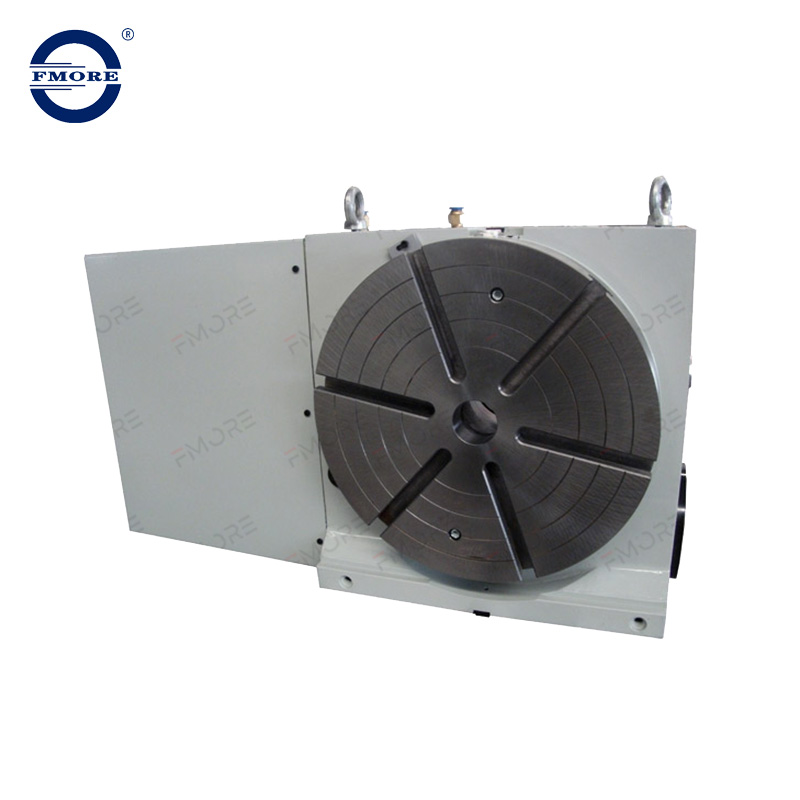

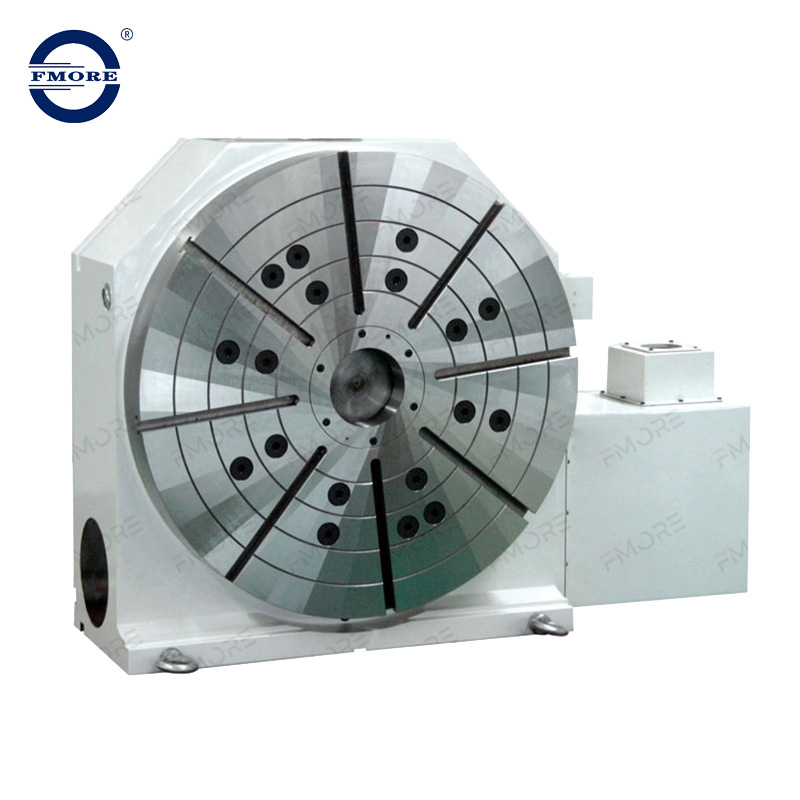

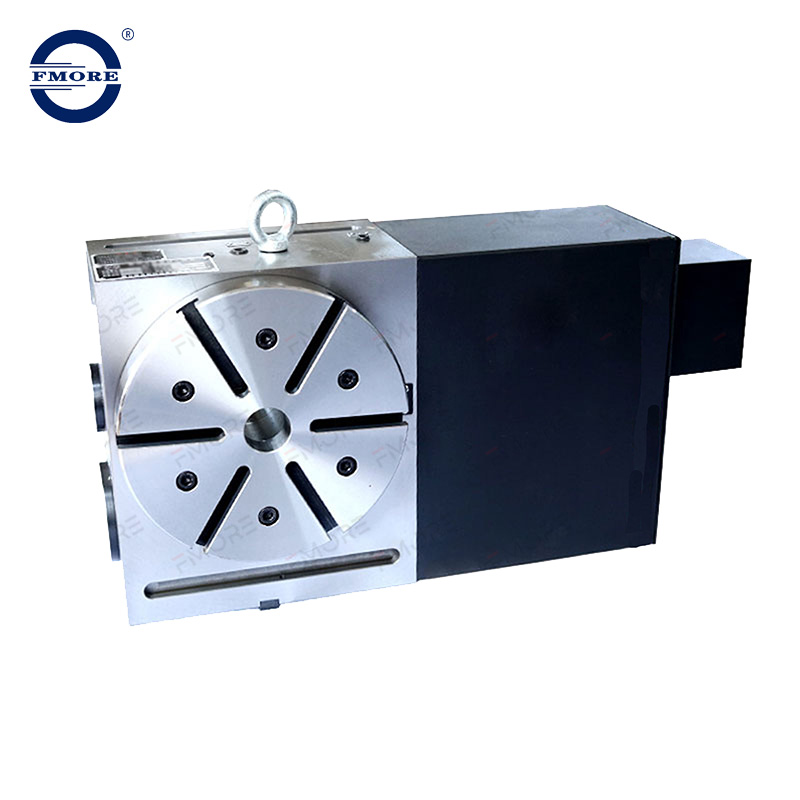

Horizontal Vertical Rotary Table

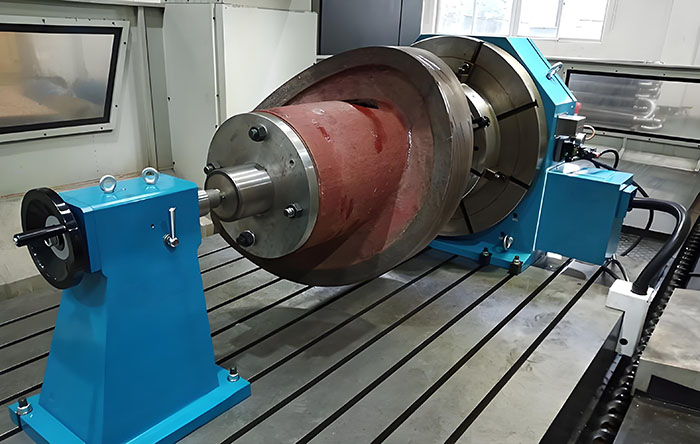

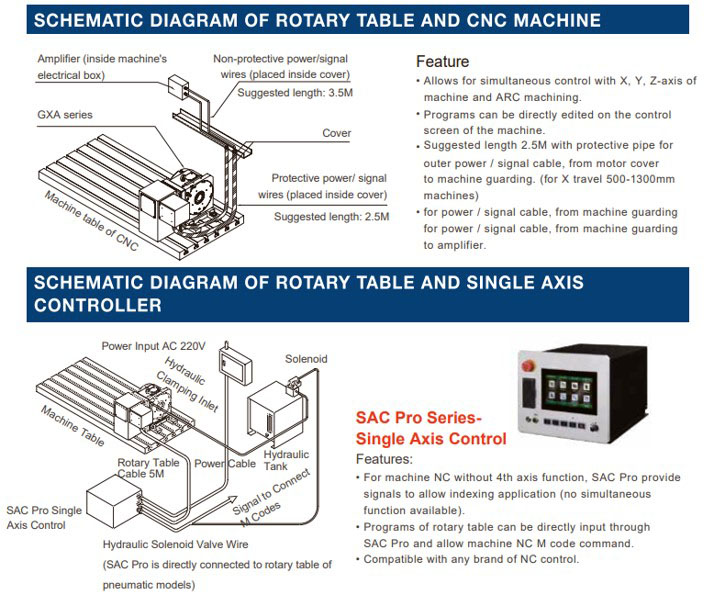

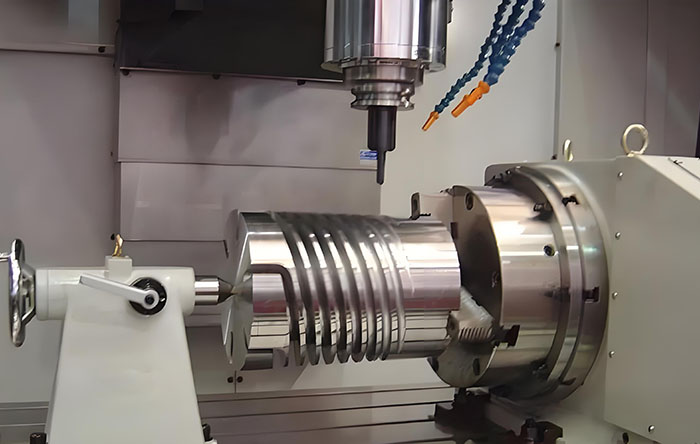

The horizontal vertical CNC rotary table is an ideal functional part of all kinds of CNC boring and milling machines, machine centers. Used as the 4th axis, the rotary table can be installed vertically or horizontally on the machine tools. It can complete all kinds of indexing rotating works under the control of the relevant control system of the host machines. Driven by servo motor, it can complete any indexing on the circumference of 360°.The face table can be equipped with plates, discs or other parts with complex shapes to realize the processing of equal and unequal holes, grooves or continuous curves.

Quantity:
Availability:





Inquire Add to Basket

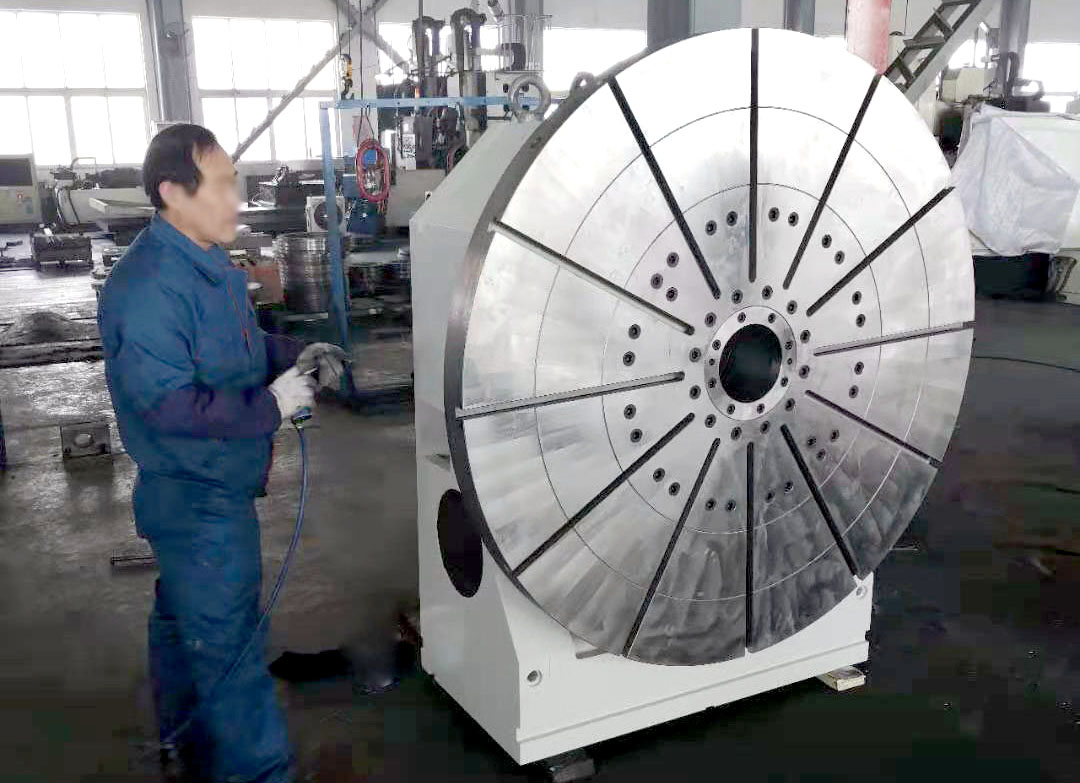

Various table sizes: table diameter is from 100mm to 1600mm, also can be designed and manufactured as per customer's requirement.
High accuracy and great durability: adapting a special anti-wearing alloy of bronze/nickel precision dual lead worm wheel and hardened steel worm shaft to ensure long term dividing accuracy.
High heavy loading capacity: special axial-radial roller bearings are incorporated to provide high rigidity.
Large braking torque: multi-brake disc system offers superior clamping force, insures smooth maching without deflection under heavy load.

Horizontal Rotary Table

Horizontal Rotary Table Vertical Rotary Table

RELATED PRODUCTS

content is empty!

Items		TK13160	TK13200	TK13250	TK13315	TK13400	TK13500	TK13630	TK13800	TK131000
Dia.of table mm		Φ160	Φ210	Φ250	Φ315	Φ400	Φ500	Φ630	Φ800	Φ1000
Center height mm		135	140	160	210	260	310	400	465	580
Total thickness mm		170	180	190	210	250	290	350	390	435
Center bore mm		Φ40H6	Φ60H6	Φ70H6	Φ90H6	Φ130H6	Φ180H6	Φ225H6	Φ230H6	Φ260H6
Width of locating key mm		14		18			22
Total radio		1:90		1:180					1:360
T-slot size mm		4-12		6-12	6-14		6-18		8-18	8-22
Max.speed r/min		16.6		11.1					5.5
Servo motor (optional)	Power(kw)	≥0.9		≥0.8		≥1.1	≥1.4		≥3.8
Servo motor (optional)	Torque(NM)	≥3		≥5		≥10	≥12		≥22
Dividing accuracy		40”	30”	30”	25”	20”	20”	20”	15”	15”
Repeatability accuracy		8”	8”	6”	6”	6”	6”	4”	4”	4”
Clamp torque NM	1.5Mpa oil	300	450	1000	1800	2000	2800	4000	6000	6000
Clamp torque NM	0.5Mpa air	110	150	300	500	650	800	1500	2000	2000
Workload kg	Hor.	150	200	250	350	500	600	800	2000	2000
Workload kg	Vert.	50	75	150	175	300	350	400	1000	1000
Max.inertia (Vert.) kg.cm.s²		15	15	16.4	55.4	55.4	100	200	187.5	187.5
Max.torque capacity N.M		90	90	300	700	1200	1700	3000	5000	5000
N.W.		55	75	110	200	325	650	1125	1300	1900
