Views: 0 Author: Site Editor Publish Time: 2025-12-23 Origin: Site
A Rotary Table is a critical component in modern machining, widely used in milling, drilling, boring, and CNC machining operations. By allowing a workpiece to rotate accurately around a fixed axis, a rotary table enables angular positioning, circular cutting, and multi-sided machining that would otherwise require multiple setups or complex fixtures.
However, not all rotary tables are the same. Rotary tables are available in different structural designs, drive methods, and functional configurations, each suited to specific machining requirements. Choosing the wrong type of rotary table can lead to reduced accuracy, inefficient workflows, increased setup time, or even machine damage.
Understanding the main types of rotary tables is essential for machinists, engineers, and manufacturing managers who want to optimize machining performance, improve productivity, and ensure long-term reliability. This article provides a comprehensive overview of rotary table classifications, explains how each type works, and highlights their typical applications, advantages, and limitations.
Rotary tables can be classified in several ways depending on their structure, control method, and functional capability. These classifications help users identify the most suitable rotary table for their machining needs.
One of the most common ways to classify a rotary table is by its mounting orientation. The orientation determines how the workpiece is supported and how cutting forces are distributed.
The two primary mounting orientations are:
Horizontal rotary tables
Vertical rotary tables
Some rotary tables are designed to support both orientations, offering greater flexibility in machining setups.
Another important classification is based on how the rotary table is driven and controlled.
Rotary tables may be:
Manually operated
Motorized
CNC controlled
The drive method directly affects positioning accuracy, automation level, and suitability for different production volumes.
Rotary tables can also be classified by their functional features, such as:
Indexing capability
Continuous rotation
Tilting or multi-axis movement
These functional differences define whether a rotary table is suitable for basic machining tasks or advanced multi-axis applications.
A Horizontal Rotary Table is a rotary table in which the table surface is mounted horizontally, parallel to the machine bed. The workpiece is placed flat on the table, and rotation occurs around a vertical axis.
This is one of the most widely used rotary table types in general machining and CNC milling operations. Its structural design provides excellent load-bearing capacity and stability.
In a horizontal rotary table, the workpiece is clamped directly onto the rotating surface. The drive system—typically a worm gear or CNC servo system—rotates the table to the desired angle or continuously during machining.
The horizontal orientation allows cutting forces to be evenly distributed across the table surface and bearings. Locking mechanisms are often used during heavy cutting to maintain rigidity and accuracy.
Horizontal rotary tables are commonly used for:
Milling flat or contoured surfaces
Drilling and tapping bolt circles
Heavy workpiece machining
General CNC machining tasks
They are especially suitable for large or heavy components where stability is a priority.
Advantages
High load capacity
Excellent rigidity and stability
Suitable for heavy and large workpieces
Limitations
Requires more floor space
Less convenient for visual inspection compared to vertical tables

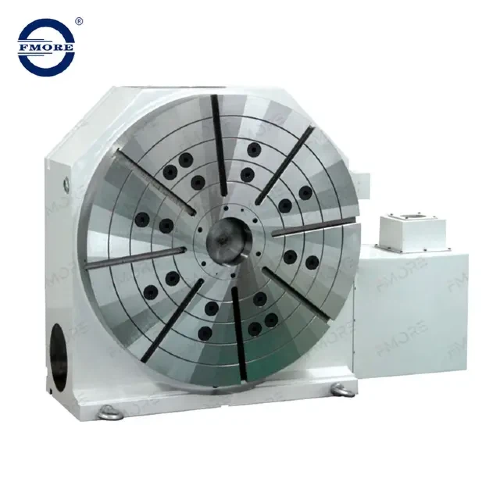

A Vertical Rotary Table is mounted so that the rotating surface is perpendicular to the machine bed. The workpiece is fixed on the vertical face of the table, and rotation occurs around a horizontal axis.
This configuration is commonly used for precision machining and applications where accessibility and visibility are important.
In a vertical rotary table, the workpiece is mounted on the vertical surface and secured with fixtures or clamps. The table rotates the workpiece into position for machining, allowing tools to access multiple features without repositioning.
Because gravity acts differently on the workpiece compared to horizontal tables, vertical rotary tables are typically used for lighter parts.
Vertical rotary tables are often used for:
Precision milling
Engraving and contour machining
Machining small to medium-sized components
Tool room applications
Advantages
Easy loading and unloading
Improved visibility of the workpiece
Suitable for high-precision machining
Limitations
Lower load capacity
Less suitable for very large or heavy parts
A Horizontal and Vertical Rotary Table is designed to operate in both horizontal and vertical orientations. This dual-function design allows users to switch between mounting positions based on machining requirements.
This type of rotary table offers exceptional versatility and reduces the need for multiple rotary tables in a workshop.
The table can be mounted horizontally or vertically on the machine tool. Once installed in the desired orientation, it functions like a standard rotary table, providing precise rotation and indexing.
The internal drive system and bearings are designed to maintain accuracy and rigidity in both positions.
Horizontal and vertical rotary tables are ideal for:
General-purpose machining
Workshops with varied machining tasks
Small-batch and medium-volume production
Their flexibility makes them a cost-effective solution for many manufacturers.
A Tilting Rotary Table combines rotational motion with an additional tilting axis. This allows the table to rotate and tilt the workpiece at various angles, enabling complex multi-axis machining.
Tilting rotary tables are a key component in advanced machining centers and five-axis machining setups.
In addition to the rotary axis, the tilting mechanism allows the table to pivot around a secondary axis. Both axes can be controlled manually or through CNC systems, depending on the design.
The combination of rotation and tilt enables the cutting tool to approach the workpiece from multiple angles in a single setup.
Tilting rotary tables are commonly used in:
Aerospace component manufacturing
Mold and die machining
Medical device production
Complex 3D surface machining
Advantages
High machining flexibility
Reduced need for multiple setups
Enables five-axis machining
Limitations
Higher cost
More complex programming and setup
A Pneumatic Rotary Table uses compressed air as its power source to rotate and index the table. This type of rotary table is commonly used in automated production and assembly environments.
Pneumatic rotary tables are typically designed for light-duty applications.
Compressed air drives a rotary actuator or vane mechanism, causing the table to rotate between preset positions. The movement is fast and repeatable, making it ideal for high-speed indexing.
Pneumatic rotary tables are usually integrated into automated systems rather than standalone machining centers.
Common applications include:
Automated assembly lines
Inspection and testing stations
Light machining operations
A CNC Rotary Table is controlled by a CNC system and driven by a servo motor. It offers high positioning accuracy, repeatability, and full programmability.
CNC rotary tables are essential components in modern CNC machining centers.
The CNC controller sends commands to the servo motor, which rotates the table to precise angular positions. Feedback systems such as encoders ensure accurate positioning and repeatability.
CNC rotary tables can operate in indexing or continuous rotation modes, depending on the machining program.
CNC rotary tables are often used as:
The fourth axis in CNC machining
Part of a five-axis machining system
This enables complex machining operations that would be impossible with three linear axes alone.
CNC rotary tables offer:
Higher accuracy
Full automation
Better integration with CNC machining processes
Rotary Table Type | Mounting Orientation | Drive Method | Typical Applications | Automation Level |
Horizontal Rotary Table | Horizontal | Manual / CNC | Heavy machining | Low–Medium |
Vertical Rotary Table | Vertical | Manual / CNC | Precision parts | Low–Medium |
Horizontal & Vertical | Both | Manual / CNC | General machining | Medium |
Tilting Rotary Table | Multi-axis | CNC | Aerospace, molds | High |
Pneumatic Rotary Table | Various | Pneumatic | Automation lines | Medium |
CNC Rotary Table | Horizontal / Vertical | Servo motor | CNC machining centers | High |
Heavier and larger workpieces require rotary tables with higher load capacity and rigidity, such as horizontal rotary tables.
High-precision applications benefit from CNC rotary tables with advanced control and feedback systems.
The rotary table must match the machine tool’s size, mounting interface, and control system.
High-volume production environments typically require CNC or pneumatic rotary tables for efficiency and consistency.
Understanding the main types of Rotary Tables is a critical step in choosing the right solution for your machining requirements. Each rotary table type—whether horizontal, vertical, tilting, pneumatic, or CNC—offers distinct advantages and is engineered to meet specific machining challenges. Selecting the correct configuration helps ensure stable performance, precise positioning, and efficient production across a wide range of applications.
By carefully assessing factors such as workpiece size and weight, required machining accuracy, machine tool compatibility, and overall production goals, manufacturers can significantly improve machining efficiency, reduce setup time, and enhance long-term operational reliability. The right rotary table is not only a functional component, but also a strategic investment in manufacturing performance and quality.
At YANTAI FORMORE MACHINERY CO., LTD., we provide a comprehensive range of rotary table solutions designed to support diverse machining needs. With strong technical expertise and a commitment to quality, we work closely with our customers to help them select the most suitable rotary table for their specific applications. We welcome you to contact us to learn more about our rotary table products and how we can support your machining and production goals.
The most common types include horizontal, vertical, tilting, pneumatic, and CNC rotary tables.
The main difference lies in mounting orientation, load capacity, and typical application scenarios.
Tilting rotary tables are used for complex, multi-angle, or five-axis machining applications.
Yes, CNC rotary tables provide higher positioning accuracy and repeatability.
Selection depends on workpiece size, machining accuracy requirements, machine compatibility, and production volume.
