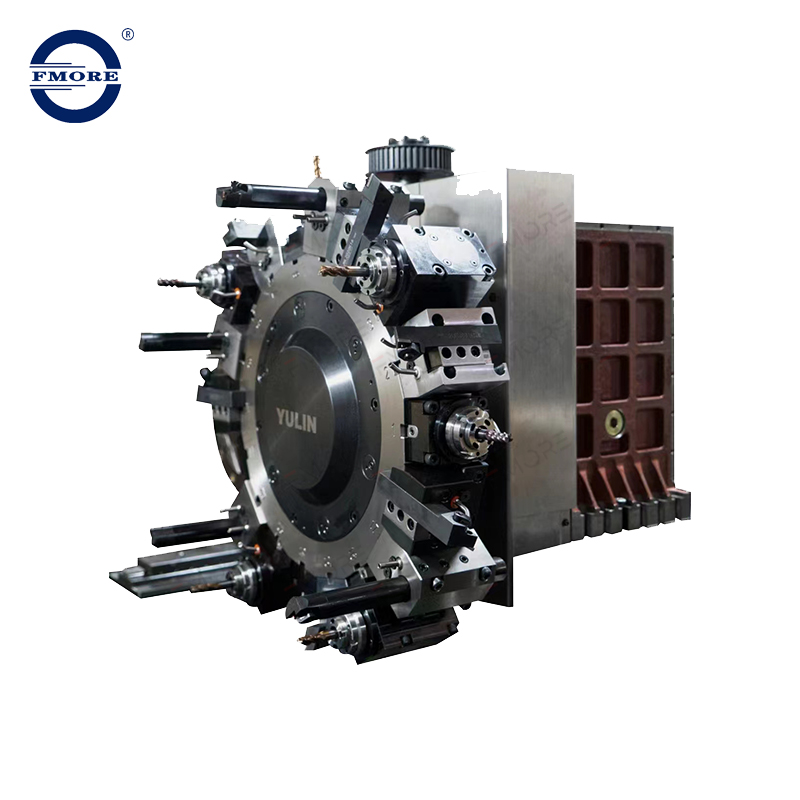

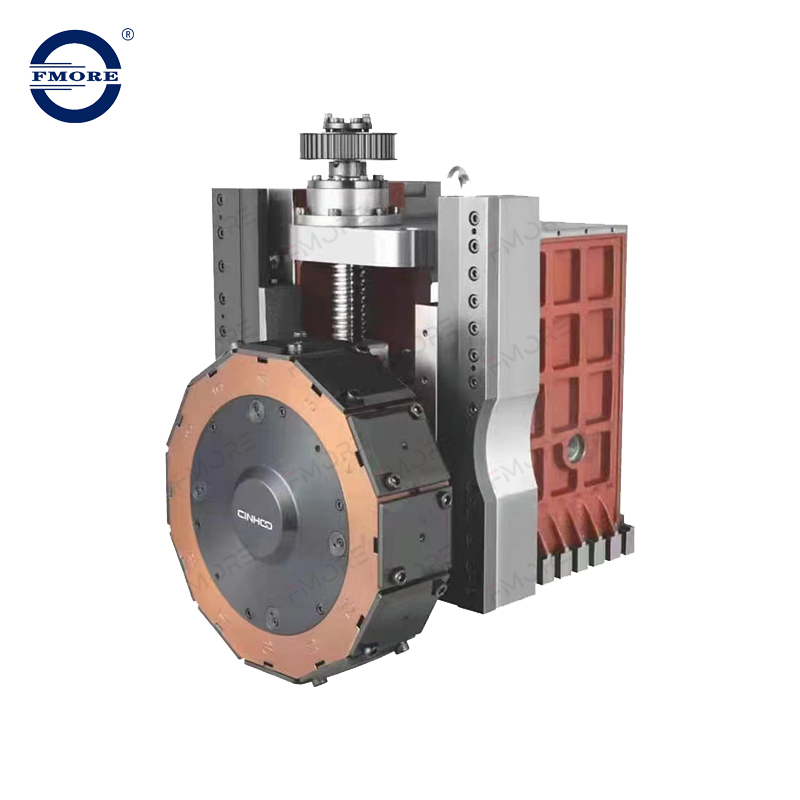

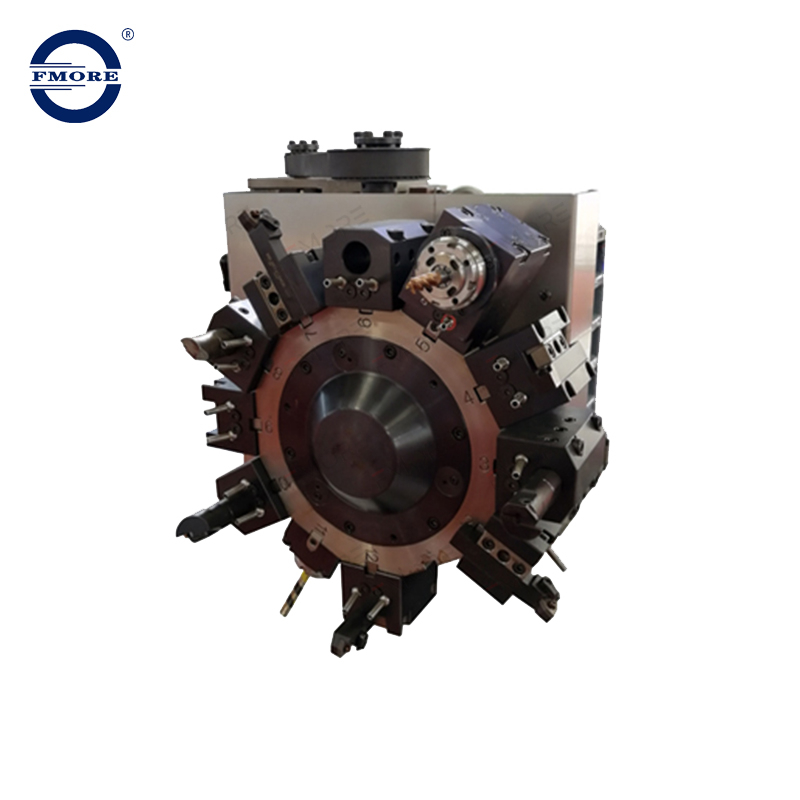

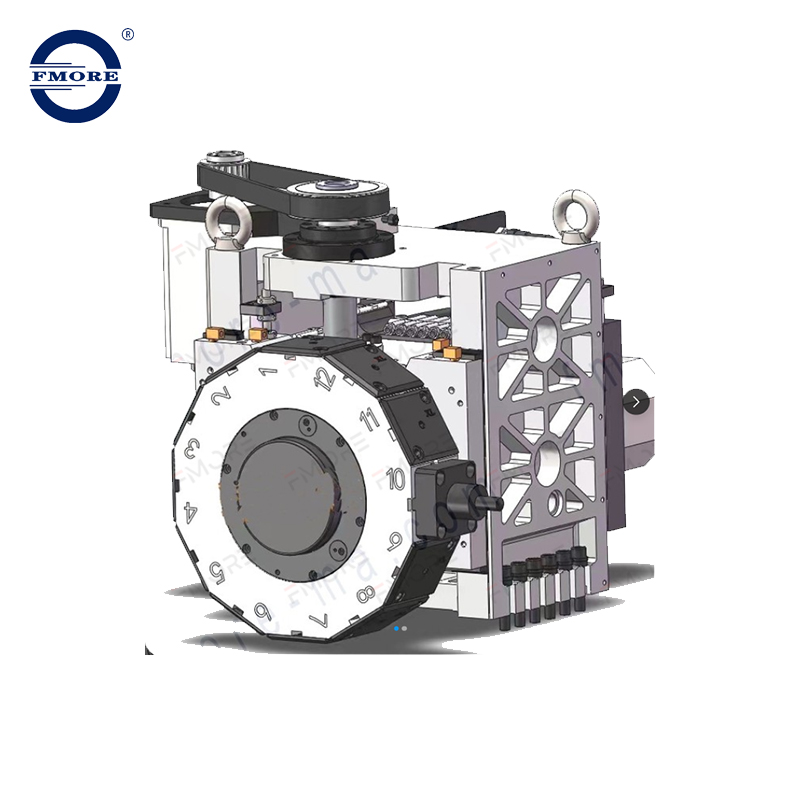

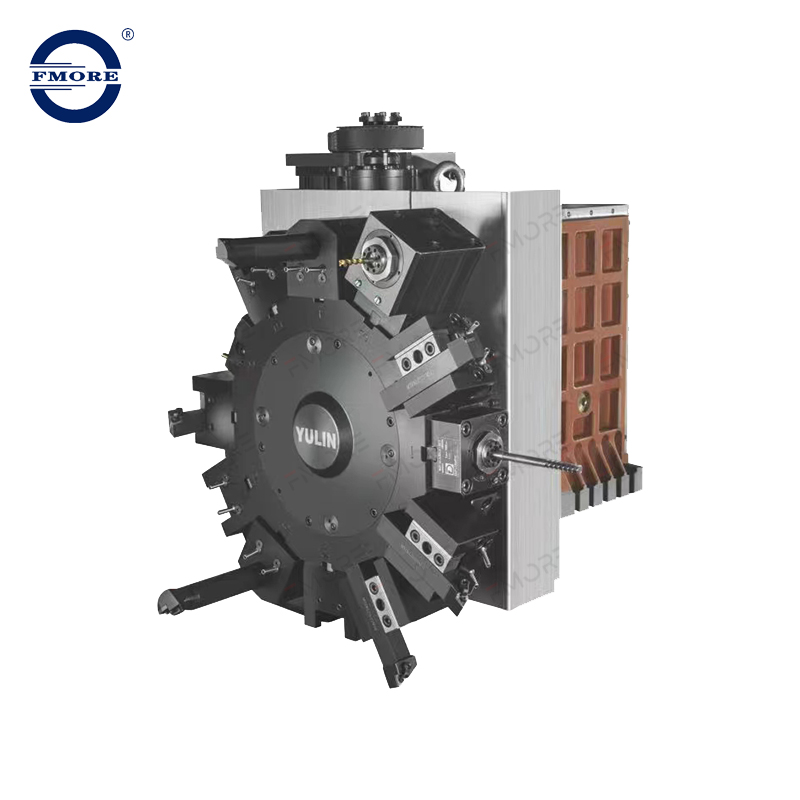

Y-axis Knife Holder

The Y-axis turret are constructed flat, They are powered by a servomotor with belt and ball screw spindle. Y -axis turret can greatly improve the machining avility of complex workpiece and improve the machining accuracy of many machining engineering parts,

Quantity:
Availability:





Inquire Add to Basket

Working Principles and Characteristcs

The Y-axis turret are constructed flat, They are powered by a servomotor with belt and ball screw spindle. Y -axis turret can greatly improve the machining avility of complex workpiece and improve the machining accuracy of many machining engineering parts,

The rotating and dividing of power cutter-head adopts the servo moto.
Suitable for use on turning machings for forward and reveres machineing.
Fast tool change without change error high effciency.
Triple plate clutch structure assures accurate position.
High rigidity , and good reliability.

Y-axis knife holder

RELATED PRODUCTS

content is empty!

No.	Iteam		DY12	DY16
1	No. of working position		12	12
2	Perm. Tangential load (turret locked)	KNm	0.75	1.7
3	Indexing accuracy		±4"	±4"
4	Repeatability accuracy		±2"	±2"
5	Time for 30° ratation and clamping	s	0.1	0.12
6	Without accelerating and braking per additional partial step	s	0.06	0.07
7	Turret unlocked or laocked	s	0.11	0.12
8	Perm. Indexing frequency (median switching angle )	/Min	25	20
9	Max. unbanlanced load torque	Nm	16	32
10	Hydraulic operating pressure	Mpa	5	5
11	Operating perssure for cooling lubricant	Mpa	2.5	2.5
12	Power-drive
13	Tool and motor transmissing gear ratio		1:1	1:1
14	Tool shank specifications		BMT40	BMT45/BMT55
15	Max.tool speed	rpm	6000	6000
16	Y axis function
17	Gear ratio		2	2
18	Maximum allowable feed speed	m/min	10	10
19	Allowable feed stroke	mm	±30	±50
20	Positioning accurancy	μm	10	10
21	Weight	kg	150	300
