In CNC machining, precision is key. Whether you're crafting automotive parts, medical components, or machinery, accuracy is crucial. But achieving this level of precision can be challenging, especially with long, flexible, or slender workpieces.
This is where the self-centering steady rest comes into play. It stabilizes and centers workpieces, reducing vibration and deflection, which can affect accuracy. In this article, we’ll explore why a self-centering steady rest is essential for your CNC machine.
A self-centering steady rest is a workholding device designed to provide stability during the machining of long or slender parts. Unlike traditional steady rests that require manual adjustments, the self-centering steady rest automatically centers the workpiece, ensuring uniform clamping and optimal precision. This feature allows for higher repeatability, reducing human error and enhancing overall efficiency.
The main advantage of a self-centering steady rest lies in its automatic adjustment mechanism. The internal hydraulic system, combined with rollers, ensures that the workpiece is held firmly at all times, regardless of size or material. These devices are designed to adapt to various diameters, and they’re equipped with components like hydraulic cylinders that provide precise, uniform force.
The self-centering feature of these rests allows them to adjust automatically as the workpiece shifts or changes shape during the machining process. This flexibility is crucial for tasks that demand consistent accuracy, such as turning, grinding, and milling. Furthermore, the use of rollers reduces friction and wear on both the rest and the workpiece, ensuring smoother operations with fewer interruptions.
In CNC machining, manual adjustments can be time-consuming and prone to error, particularly when dealing with long or complex workpieces. A self-centering steady rest eliminates the need for manual recalibration, providing a hands-off solution that maximizes both accuracy and productivity. Automatic centering also helps maintain tight tolerances, ensuring that each part is machined consistently throughout the production process.
Feature | Self-Centering Steady Rest | Traditional Steady Rest |
Automatic Centering | Yes | No |
Adjustment Speed | Fast | Slow |
Precision | High | Dependent on operator |
Setup Time | Minimal | Longer |
Maintenance | Requires less frequent checks | May require frequent adjustments |
The primary function of any steady rest is to prevent the workpiece from shifting, bending, or vibrating during machining. This is particularly critical when working with long or thin materials that are prone to flexing under the pressure of cutting tools. A self-centering steady rest ensures that the workpiece remains stable by automatically adjusting and providing uniform support. This minimizes deflection, a common issue in machining processes that can lead to dimensional inaccuracies and poor surface finishes.
By maintaining a steady and centered workpiece, CNC machines can operate at higher speeds with greater precision, resulting in a more efficient manufacturing process and superior final products.
Vibrations are one of the leading causes of inaccuracies in CNC machining. Whether it’s from the cutting tool or the workpiece itself, vibrations can lead to errors in dimension and surface finish, as well as premature tool wear. A self-centering steady rest minimizes vibrations by providing a stable contact point for the workpiece. This ensures that vibrations are absorbed and mitigated, even during high-speed operations.
The reduction in vibration not only improves the accuracy of the machining process but also enhances the quality of the surface finish. This is especially beneficial in industries where fine finishes and tight tolerances are essential, such as aerospace and medical device manufacturing.
CNC machines often work at high speeds to improve throughput. However, this increased speed can exacerbate any instability in the workpiece, leading to more significant deflection and vibration. The self-centering steady rest maintains the workpiece's alignment and stability, even during rapid, high-speed machining. This ensures that precision is not sacrificed for speed, resulting in a higher volume of parts produced with consistent accuracy.
In a busy workshop or production environment, time is of the essence. A self-centering steady rest significantly reduces setup times by eliminating the need for manual centering adjustments. With automatic centering, operators can quickly secure workpieces, allowing machines to run more efficiently and with fewer interruptions. This increased productivity is especially valuable in environments where high-volume manufacturing is required.
Additionally, the self-centering steady rest minimizes the need for rework, as it ensures accurate centering from the start. This further enhances productivity by reducing the time spent on correcting errors or making adjustments.
While the initial investment in a self-centering steady rest may be higher than traditional models, the long-term savings are substantial. By reducing the need for manual adjustments, enhancing productivity, and improving the lifespan of tools, self-centering steady rests offer a significant return on investment. The automated nature of these devices also means fewer human errors, reducing costly mistakes that would otherwise require rework.
In CNC machining, vibrations not only affect precision but can also lead to safety concerns, especially when machining heavy or long workpieces. A self-centering steady rest minimizes these vibrations, ensuring that the workpiece remains securely held in place. This improves safety by preventing sudden movements or shifts during the machining process. Moreover, by reducing vibrations and wear on the workpiece and tools, these steady rests extend the overall lifespan of the equipment.

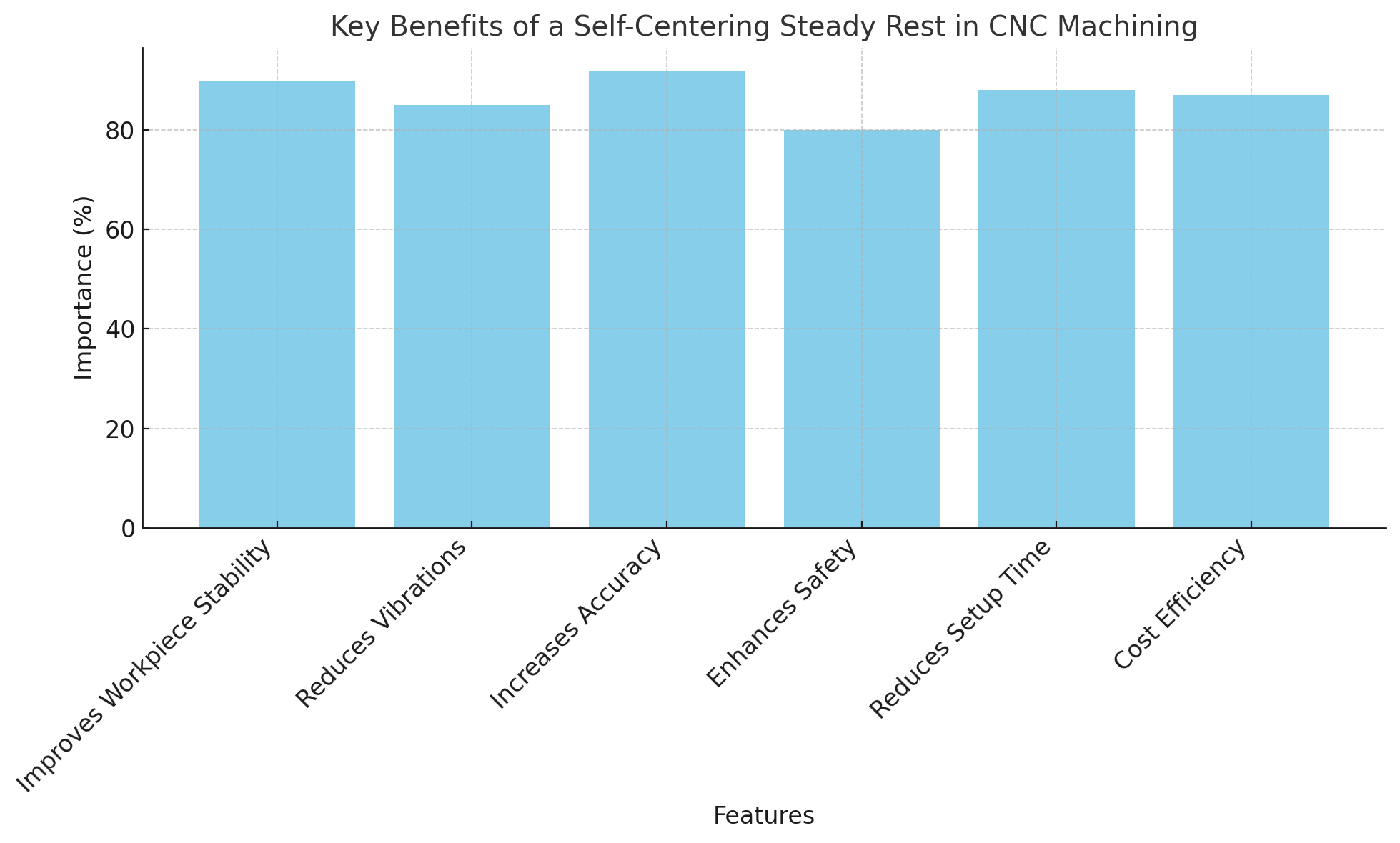

Benefit | Description |
Improved Workpiece Stability | Reduces deflection and vibration during machining |
Increased Productivity | Faster setup times and fewer errors |
Enhanced Safety | Minimizes machine tool wear and vibrations |
Longer Tool Life | Reduces tool wear caused by vibrations and misalignment |
The self-centering steady rest is essential in industries that require high precision and repeatability, such as aerospace, automotive, and medical manufacturing. These industries rely on CNC machines to produce parts with strict dimensional tolerances and superior surface finishes. For operations involving long, slender parts or complex geometries, a self-centering steady rest is crucial to ensuring stability, minimizing deflection, and improving overall accuracy.
A major advantage of the self-centering steady rest is its adaptability to various CNC machine types and workpieces. Whether you’re machining small, intricate parts or large, heavy components, these steady rests can be customized to fit the specific needs of the job. Tailored solutions ensure optimal support and precise centering, allowing CNC machines to achieve the highest levels of accuracy and performance.
Industry/Application | Ideal Use Case |
Aerospace | Precision machining of long shafts and thin components |
Automotive | Machining of axles, rods, and other critical components |
Medical Equipment | Producing precise, slender medical device parts |
General Manufacturing | Support for long, flexible workpieces in CNC lathes |
While the self-centering steady rest offers numerous benefits, it may not be necessary for every CNC operation. For smaller, more rigid workpieces or jobs with low-speed requirements, traditional steady rests may suffice. Additionally, the compatibility of the steady rest with specific CNC machines and workpieces should always be considered before making an investment.
Like all CNC accessories, self-centering steady rests require regular maintenance to ensure optimal performance. This includes checking for wear, cleaning rollers, and ensuring proper lubrication. Proper care will extend the lifespan of the steady rest, ensuring it continues to provide reliable performance for years to come.
A self-centering steady rest is crucial for precision and efficiency in CNC machining. It automatically centers workpieces, reduces vibrations, and improves stability, boosting machining accuracy. Operational advantages include faster setup, cost savings, and improved safety.
Investing in a self-centering steady rest enhances both the quality and speed of CNC operations. Yantai Formore Machinery Co., Ltd. offers custom steady rests designed for specific machining needs, ensuring precision and optimal performance. Consider the type of workpieces and production requirements when selecting the best solution.
A: A self-centering steady rest is a tool that automatically aligns and supports the workpiece during machining. It helps improve CNC machining accuracy by stabilizing the workpiece, reducing deflection and vibration.
A: The self-centering steady rest stabilizes long, flexible workpieces, reducing vibrations and preventing deflection, which ensures higher machining precision and better surface finishes.
A: While a CNC steady rest is ideal for long or slender workpieces, it may not be necessary for shorter, more rigid parts. It’s essential to evaluate your workpiece size and material type to determine compatibility.
A: The self-centering steady rest reduces setup time, improves productivity, and enhances safety by stabilizing the workpiece, resulting in fewer vibrations and reduced wear on tools and machines.
A: Yes, self-centering steady rests can be customized for different CNC machine types and workpieces, ensuring optimal performance and compatibility with specific machining requirements.
