A rotary table is one of the most versatile pieces of equipment in machining and metalworking, enabling precise control of angular movement for complex operations. By allowing a workpiece to rotate along a fixed axis, a rotary table transforms the capabilities of a milling machine, drill press, or CNC setup. It is not only a tool for engineers but also a productivity booster for manufacturers who require accuracy, repeatability, and efficiency in producing intricate parts. Understanding what a rotary table is used for reveals how it improves workflows, expands machining possibilities, and ensures superior results across industries.
At its core, a rotary table is a precision work positioning device. It mounts onto a milling machine or CNC machine bed, holding the workpiece securely while allowing controlled rotation around a horizontal or vertical axis. Unlike static work-holding tools such as vices, the rotary table introduces the dimension of angular movement, which is crucial for machining circular patterns, arcs, gears, and complex contours.
The rotary table typically features a graduated dial, a handwheel (in manual models), and clamping slots to secure the workpiece. More advanced CNC rotary tables are motor-driven, integrating seamlessly into automated setups. Their purpose is to achieve cuts, holes, and profiles that would otherwise be impossible or inefficient with linear machining alone.
Rotary tables expand the range of operations a machinist can perform. Some of the most common and important applications include:
When a part requires slots, grooves, or bolt circles in a perfectly circular arrangement, the rotary table ensures each cut is placed accurately by rotating the part at set intervals.
Instead of programming or attempting complex hand feeds, machinists use rotary tables to generate smooth arcs and precise radii.
Rotary tables make gear cutting possible by dividing the rotation of the workpiece into equal segments, ensuring uniform tooth spacing.
For components like flanges or wheels, evenly spaced hole patterns are critical. A rotary table allows precise drilling without manual measurement for every hole.
Table 1: Common Operations with a Rotary Table
| Operation | Purpose | Benefit |
|---|---|---|
| Circular Slotting | Cutting slots in circular paths | High precision, consistent fit |
| Gear Cutting | Forming gear teeth | Accurate, repeatable tooth shape |
| Drilling Bolt Circles | Evenly spaced holes around a circle | Reduces setup time |
| Complex Contouring | Multi-axis machining for 3D surfaces | Enables advanced part designs |
In modern CNC machining, rotary tables extend the capabilities of three-axis machines, effectively converting them into four-axis systems. By adding a rotary axis, machinists can perform continuous contouring, engraving, and multi-face machining without repositioning the workpiece.
CNC rotary tables are motorized, enabling automatic indexing and rotation controlled directly by the machine’s programming. This integration reduces errors caused by manual adjustments and accelerates production cycles. For industries such as aerospace and medical device manufacturing, where tight tolerances are non-negotiable, the CNC rotary table ensures reliability and efficiency.
The value of a rotary table lies in the advantages it provides compared to traditional machining setups.
Enhanced Accuracy – Angular graduations and automated indexing reduce human error.
Time Savings – Multi-step machining operations can be consolidated without re-clamping.
Increased Complexity – Enables the creation of parts with intricate geometries and multi-sided features.
Versatility – Supports both horizontal and vertical orientations for different applications.
Repeatability – Essential for producing batches of identical components.
Table 2: Benefits of Rotary Tables vs. Conventional Work-Holding
| Feature | Conventional Setup | With Rotary Table |
|---|---|---|
| Accuracy of Hole Circles | Dependent on manual layout | Automated, precise divisions |
| Gear Cutting | Requires special machines | Achievable on milling machine |
| Setup Time | Longer, frequent re-clamp | Faster, fewer adjustments |
| Complex Part Machining | Limited capability | Expanded possibilities |
The applications of rotary tables span multiple sectors where precision and efficiency are critical.
Manufacturing – Used for producing gears, flanges, and custom components in large volumes.
Aerospace – Essential for machining turbine blades, engine parts, and structural components requiring perfect symmetry.
Automotive – Applied in the production of transmission gears, wheels, and precision components.
Medical Devices – Helps manufacture implants and surgical tools with intricate geometries.
Research & Prototyping – Valuable for creating prototypes with high accuracy during product development.
Rotary tables are available in several designs, each suited to specific tasks.
The most common form, where the table is mounted horizontally on the milling machine, ideal for drilling and circular milling.
Allows the workpiece to stand upright, used when side machining or working on cylindrical surfaces is required.

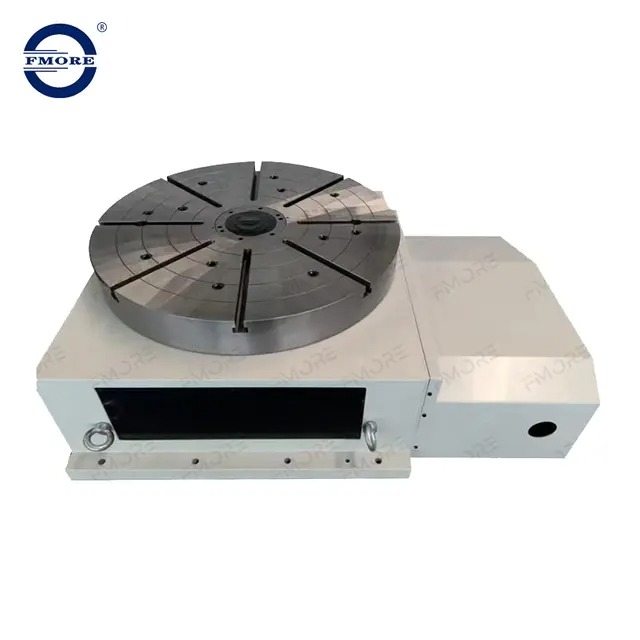

Fully motorized and programmable, designed for integration into CNC machining centers for continuous production.

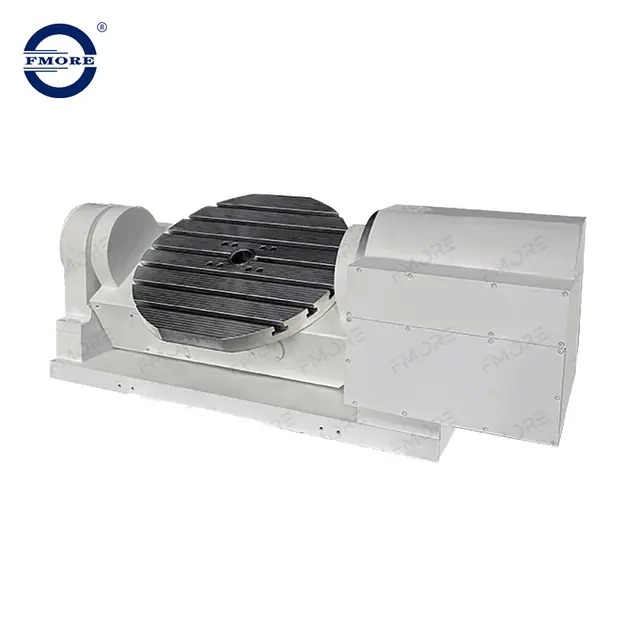

Adds tilt capability to the rotary axis, enabling true 5-axis machining for highly complex parts.
Table 3: Types of Rotary Tables and Use Cases
| Type | Orientation | Ideal For |
|---|---|---|
| Horizontal | Flat surface | Drilling, circular slotting |
| Vertical | Upright | Cylindrical and side machining |
| CNC Rotary Table | Motorized | Automated multi-axis machining |
| Dual-Axis Rotary Table | Tilting + Rotating | Advanced aerospace/medical parts |
To maximize the lifespan and precision of a rotary table, regular maintenance is essential. Machinists should:
Keep the table clean and free of chips and debris.
Lubricate gears and bearings as recommended by the manufacturer.
Inspect for wear on clamping slots and surface flatness.
Store the table in a controlled environment to prevent rust.
Proper training also ensures that operators use the rotary table to its full potential without risking damage to the equipment or workpiece.
A rotary table is far more than an accessory; it is a key enabler of precision machining. By allowing controlled rotation of the workpiece, it opens the door to operations such as circular milling, gear cutting, and multi-face machining that would otherwise demand separate equipment or complex setups. From traditional workshops to high-tech CNC environments, the rotary table continues to be a cornerstone of productivity, accuracy, and versatility in manufacturing and engineering.
Q1: What is the main purpose of a rotary table?
The main purpose of a rotary table is to hold a workpiece securely while allowing precise angular movement for machining circular patterns, arcs, gears, and multi-sided features.
Q2: Can a rotary table be used on any milling machine?
Yes, rotary tables are compatible with most milling machines, provided the size and mounting fit the machine’s work surface.
Q3: What industries rely most on rotary tables?
Rotary tables are widely used in aerospace, automotive, manufacturing, and medical device production due to their accuracy and versatility.
Q4: How is a CNC rotary table different from a manual one?
A CNC rotary table is motorized and controlled by programming, allowing automatic rotation and indexing, while a manual table requires handwheel adjustments.
Q5: Do rotary tables require regular maintenance?
Yes, regular cleaning, lubrication, and inspection are necessary to maintain precision and extend the lifespan of the rotary table.
