In modern machining and precision engineering, the rotary table plays a central role in achieving accurate circular cuts, complex angles, and repeatable multi-axis operations. This device allows machinists to rotate a workpiece in precise increments, enabling them to drill, cut, or engrave at exact orientations that are otherwise difficult to achieve. While rotary tables come in different sizes, load capacities, and mounting styles, their fundamental division falls into two distinct categories. Understanding these two types of rotary tables is essential for manufacturers, CNC operators, and engineers who want to optimize machining processes for speed, accuracy, and flexibility.
Before diving into the classification, it is important to clarify the purpose of a rotary table in machining. At its essence, a rotary table transforms linear machining equipment, such as milling machines or drilling machines, into powerful multi-axis systems. By rotating the workpiece against a fixed cutting tool—or vice versa—engineers can create arcs, radii, gear teeth, bolt hole patterns, and even complex 3D profiles.
Rotary tables are particularly useful in precision industries such as aerospace, medical devices, automotive, and toolmaking. Their integration reduces the need for multiple setups, which minimizes human error and saves time. The distinction between the two main types of rotary tables—manual and CNC-driven—lies in how motion is achieved and controlled.
The world of rotary tables is primarily divided into manual rotary tables and CNC rotary tables. Each serves the same fundamental purpose of rotating a workpiece, but they differ significantly in terms of operation, accuracy, and use cases.
| Type of Rotary Table | Operation Method | Best Suited For | Accuracy Level | Common Applications |
|---|---|---|---|---|
| Manual Rotary Table | Handwheel, graduated dials | Low-volume machining, hobbyists, simple indexing | Moderate | Prototyping, bolt hole circles, light milling |
| CNC Rotary Table | Computer-controlled, servo motors | High-volume machining, automation | High precision | Aerospace components, complex profiles, mass production |
This classification provides a foundation for selecting the right table depending on machining goals and production scale.

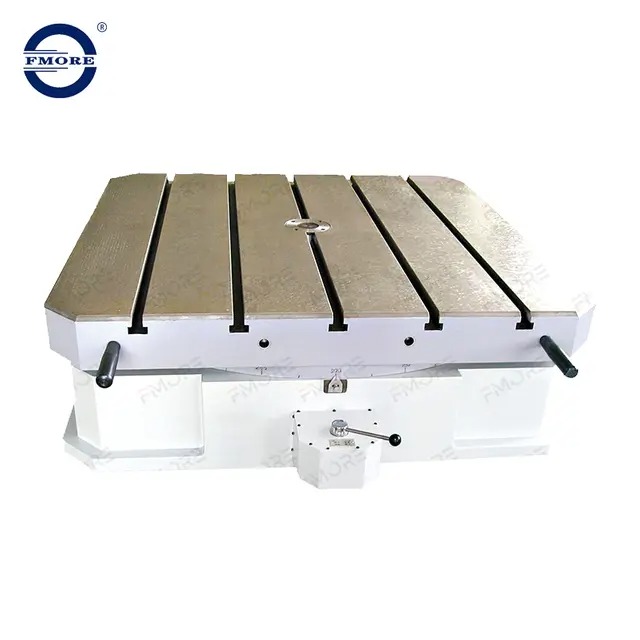

Manual rotary tables are the original form of this machining accessory. Operated by turning a handwheel, they allow machinists to rotate the table incrementally based on calibrated dials. The workpiece is clamped onto the table’s surface, and the machinist manually aligns it to perform circular or angular cuts.
Cost-effectiveness: Manual rotary tables are generally less expensive than CNC models, making them accessible to small workshops and hobby machinists.
Durability: With fewer electronic components, they are robust and require less maintenance.
Simplicity: Operators have direct control without programming requirements.
Time-intensive: Each adjustment requires manual calibration, which slows down complex projects.
Operator skill dependent: Accuracy depends heavily on the machinist’s expertise.
Limited complexity: While excellent for simple arcs or bolt hole circles, they struggle with 3D machining or irregular geometries.

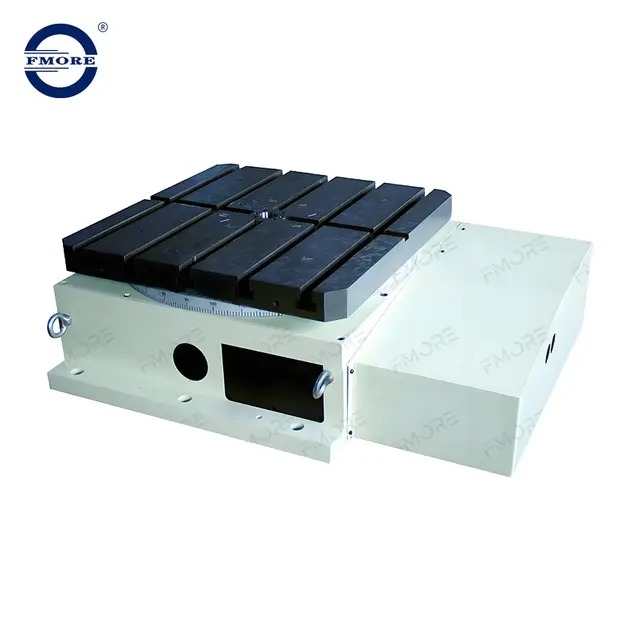

CNC rotary tables represent the modern evolution of this technology. Integrated with computer numerical control systems, they use servo motors to rotate the workpiece automatically, with accuracy measured in fractions of a degree. The operator inputs a digital program, and the table executes rotations seamlessly in coordination with the milling or drilling machine.
Unparalleled precision: Capable of repeatable, micron-level accuracy.
Efficiency: Automated control eliminates the need for constant operator input, saving time on repetitive tasks.
Complex capabilities: Enables multi-axis machining, including 4-axis and 5-axis operations.
Scalability: Ideal for large-scale production environments.
Higher cost: Significant investment compared to manual models.
Maintenance needs: More moving parts and electronics increase servicing demands.
Learning curve: Operators must be trained in CNC programming.
| Feature | Manual Rotary Table | CNC Rotary Table |
|---|---|---|
| Control Mechanism | Handwheel & dial | Servo motors & software |
| Setup Time | Longer | Shorter |
| Complexity of Machining | Basic arcs, indexing | Advanced 3D profiles, multi-axis work |
| Operator Skill Requirement | High | Moderate (with programming knowledge) |
| Cost | Lower | Higher |
| Industry Adoption | Prototyping, small shops | Aerospace, automotive, mass manufacturing |
These differences highlight that while both types achieve the same goal—controlled rotation—their practical applications vary significantly depending on project scale and precision requirements.
When selecting between a manual and CNC rotary table, businesses and individuals should weigh several factors:
Project complexity – If your work primarily involves simple cuts or bolt circles, a manual rotary table is sufficient. For advanced geometries, a CNC model is indispensable.
Production volume – High-volume, repeatable production favors CNC, while prototyping and low-batch jobs may justify a manual table.
Budget considerations – Entry-level workshops benefit from the affordability of manual tables, whereas large-scale manufacturers can absorb the higher costs of CNC for long-term efficiency.
Operator expertise – Skilled machinists can achieve excellent results with manual tables, while CNC levels the playing field for less experienced operators through automation.
Rotary tables are indispensable across multiple industries, and the choice between manual and CNC often depends on scale and tolerance requirements.
Aerospace: CNC rotary tables ensure the tight tolerances required for turbine blades and engine parts.
Automotive: High-speed production lines rely on CNC models for consistent component shaping.
Medical devices: Precision is critical in implants and instruments, where CNC tables dominate.
Education and prototyping: Manual rotary tables remain popular in training environments and small-scale innovation labs.
This dual adoption demonstrates that both types of rotary tables remain relevant despite differences in technology.
As manufacturing continues evolving, rotary tables are also advancing. CNC tables are integrating with Industry 4.0 systems, allowing real-time monitoring, predictive maintenance, and enhanced connectivity. Meanwhile, manual tables are being refined with better bearings, improved graduation systems, and hybrid models that combine manual operation with motor assistance.
Such innovations suggest that while CNC will dominate high-tech manufacturing, manual rotary tables will maintain importance in smaller workshops and specialized applications.
The two types of rotary tables—manual and CNC—represent different approaches to achieving rotational precision in machining. Manual rotary tables offer affordability, simplicity, and reliability, making them suitable for small-scale operations and prototyping. CNC rotary tables, on the other hand, provide unmatched precision, automation, and efficiency, serving as the backbone of advanced manufacturing industries.
Choosing between the two depends on project requirements, budget, and operator expertise. Both remain vital tools in modern machining, each excelling in specific scenarios.
1. What is the main purpose of a rotary table?
A rotary table is used to rotate a workpiece precisely during machining, allowing for circular cuts, arcs, angles, and complex profiles.
2. Are manual rotary tables still relevant today?
Yes, manual rotary tables are still widely used for prototyping, education, and low-volume machining where cost-efficiency is key.
3. Why choose a CNC rotary table over a manual one?
CNC rotary tables offer higher accuracy, faster production, and the ability to machine complex geometries automatically.
4. Can rotary tables be used with any milling machine?
Most rotary tables can be adapted to standard milling machines, but compatibility with CNC systems depends on machine specifications and control software.
5. Which industries rely most on CNC rotary tables?
Aerospace, automotive, and medical device manufacturing heavily depend on CNC rotary tables due to their demand for tight tolerances and high production efficiency.
