Precision is crucial in lathe machining, but which tool ensures the best results? Should you choose a lunette or a steady rest for your lathe?
In this article, we'll compare both tools, discussing their roles in enhancing machining accuracy, preventing vibration, and ensuring stability. You’ll learn which tool works best for different lathe operations and machining needs.
A steady rest is an essential tool used in lathe operations to support long and slender workpieces that are prone to deflection during machining. It is mounted on the lathe bed and holds the workpiece securely in place, preventing unwanted movement caused by cutting forces. The tool features adjustable fingers or pads that make contact with the workpiece at multiple points along its length. These points of support are typically designed to minimize vibration, reduce deflection, and improve the overall stability of the workpiece, ensuring better machining accuracy and surface finish.
A steady rest is particularly useful when machining components like shafts, rods, and tubes that extend far beyond the lathe's chuck or tailstock, where additional support is necessary to avoid bending or distortion.
There are two main types of steady rests: fixed and movable (follow). Each has its unique advantages depending on the specific lathe operation being performed.
● Fixed Steady Rest: This type is mounted stationary on the lathe bed and does not move during the machining process. It is suitable for workpieces that require support at specific intervals but do not need continuous movement.
● Movable (Follow) Steady Rest: This type moves along with the cutting tool during machining. It follows the path of the tool, ensuring constant support near the cutting area. A follow rest is ideal for applications that involve turning long workpieces or require precision throughout the entire length.
Each type of steady rest offers distinct benefits depending on the workpiece's requirements and the nature of the machining operation.
A lunette is another tool used for supporting long workpieces, but unlike the steady rest, it functions by positioning the workpiece along a fixed centerline. The tool consists of two adjustable arms or supports that grip the workpiece at either end, providing stability during turning operations. The lunette supports the workpiece by maintaining a consistent distance from the lathe's center, ensuring it stays aligned during the cutting process.
One of the key features that differentiate the lunette from the steady rest is its mounting position. Unlike a steady rest, which is attached to the bed of the lathe, a lunette is often positioned to align with the lathe's spindle axis, providing a more secure and rigid hold on the workpiece during rotation.
Lunettes are typically used when turning long workpieces that do not require continuous support throughout their entire length. They are ideal for supporting the ends of long shafts or components, especially when these parts are prone to bending or twisting.
A lunette is most effective for situations where the workpiece is centered along the lathe's axis, and the primary concern is preventing deflection or wobbling. They are commonly used in high-speed turning operations where consistent alignment is critical for maintaining accuracy and surface quality.

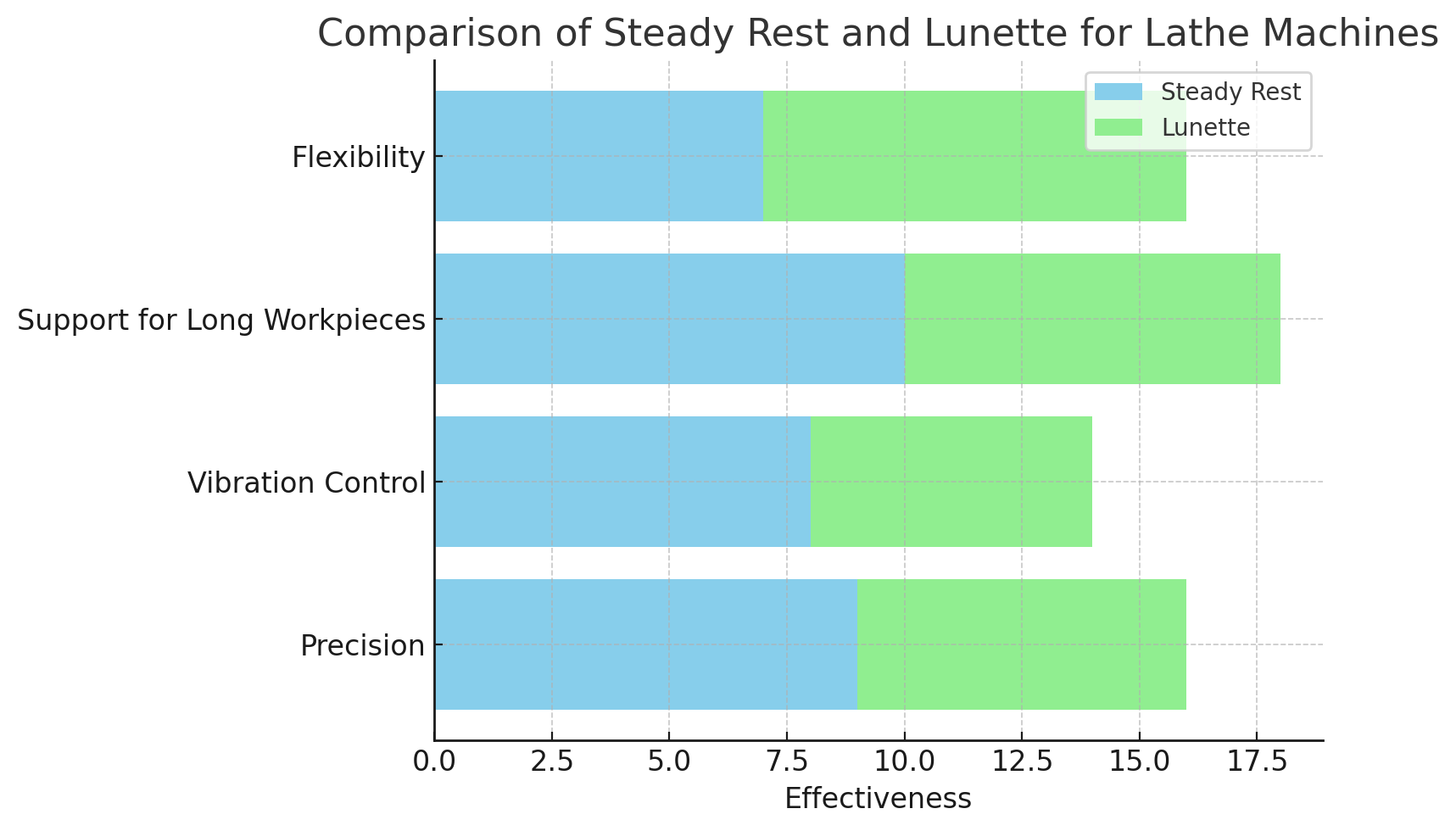

When choosing between a lunette and a steady rest, several key factors must be considered. Both tools provide support, but they do so in different ways, with each being better suited for specific applications.
● Design and Positioning: A steady rest typically offers more points of contact with the workpiece, making it more suitable for providing support across the length of long, slender parts. On the other hand, the lunette holds the workpiece at either end, aligning it with the lathe's centerline, which may be more advantageous for certain applications.
● Movement and Adjustability: The steady rest provides more flexibility, especially with the movable (follow) type that moves with the cutting tool, offering precise support during the entire machining process. In contrast, a lunette remains stationary and provides support at fixed points, making it ideal for workpieces that do not require movement during machining.
● Application Scope: A steady rest is typically used for machining longer, more flexible workpieces that need support along their entire length. A lunette, however, is best suited for larger workpieces or when the workpiece is centered on the lathe, with the main goal being alignment and preventing deflection at the ends.
Feature | Steady Rest | Lunette |
Purpose | Provides continuous support for long, slender workpieces | Aligns and supports large workpieces along the lathe's centerline |
Best for | Flexible, long parts prone to deflection and vibration | Large parts requiring precise alignment |
Support Type | Continuous support to prevent vibration and deflection | Supports workpieces in a centered position |
Applications | Turning, drilling, and boring long shafts or rods | Machining large workpieces or those needing centerline alignment |
Both tools offer significant advantages, but they also come with some drawbacks.
● Steady Rest:
Advantages: Provides comprehensive support, minimizing deflection and vibration. It is versatile for different lathe operations and workpiece sizes.
Disadvantages: The fixed steady rest limits movement, while the movable steady rest may require careful alignment for continuous support.
● Lunette:
Advantages: Ensures precise alignment, particularly for long or large workpieces. It is ideal for operations where the workpiece is centered.
Disadvantages: May not be as effective for smaller or flexible workpieces that require continuous support along their length.
When working with long or slender workpieces, a steady rest is generally the best choice, as it provides support along the length of the workpiece, reducing the risk of deflection or vibration. A lunette may be suitable when the workpiece is centered along the lathe's axis and only requires support at the ends.
If your machining operation requires high precision, such as maintaining tight tolerances and achieving a smooth surface finish, a steady rest is typically the better choice. The ability to move with the tool and provide continuous support helps maintain concentricity and ensures that the workpiece remains stable throughout the cutting process.
For operations where vibration is a concern, such as turning large workpieces or high-speed operations, a steady rest can offer superior support. It minimizes deflection and vibration, ensuring that the cutting tool remains stable during the entire machining process.
Workpiece Type | Recommended Tool | Why Choose This Tool |
Long, slender workpieces | Steady Rest | Prevents deflection, vibration, and ensures precision |
Large workpieces needing alignment | Lunette | Positions workpieces along the centerline for stability |
High-precision machining | Steady Rest | Reduces vibrations, maintains dimensional accuracy |
Flexible, delicate materials | Steady Rest | Provides additional support to prevent bending or chattering |
To ensure both lunettes and steady rests perform optimally, regular maintenance is essential. This includes cleaning the tools after each use, lubricating the moving parts, and checking for signs of wear or damage. For steady rests, particularly the movable versions, it is important to ensure that the adjustment mechanisms remain functional and free from debris.
Inspect your tools periodically to check for wear on the contact points or any damage to the frame. For steady rests, worn-out jaws or rollers may need to be replaced, while lunettes may require adjustments if the arms or supports become loose or misaligned. Always replace damaged components to avoid affecting machining accuracy.
Choosing the right support tool for your lathe is crucial for optimal machining results. A steady rest is ideal for long, slender workpieces requiring continuous support, while a lunette suits large workpieces or those needing alignment along the centerline.
Companies like Yantai Formore Machinery Co., Ltd. provide high-quality steady rests and lunettes that enhance lathe performance and ensure precision in every machining operation.
A: A steady rest is used to support long or slender workpieces during lathe operations. It helps prevent deflection and vibration, ensuring better precision and stability.
A: A lunette supports workpieces by positioning them along the lathe's centerline, while a steady rest provides continuous support to prevent deflection, particularly for long, flexible parts.
A: A steady rest is best used for long, slender workpieces that are prone to bending or vibrating. It helps maintain stability and precision during turning operations.
A: No, lunettes are typically used for larger workpieces or when aligning the piece along the lathe's centerline is crucial. For smaller, flexible parts, a steady rest is more suitable.
A: A steady rest is ideal for supporting long, slender workpieces and minimizing vibrations. It provides continuous support, while a lunette is better for larger workpieces requiring alignment.
A: Choose a steady rest for long or delicate parts needing continuous support, and a lunette for larger workpieces or when precise alignment along the centerline is needed.
