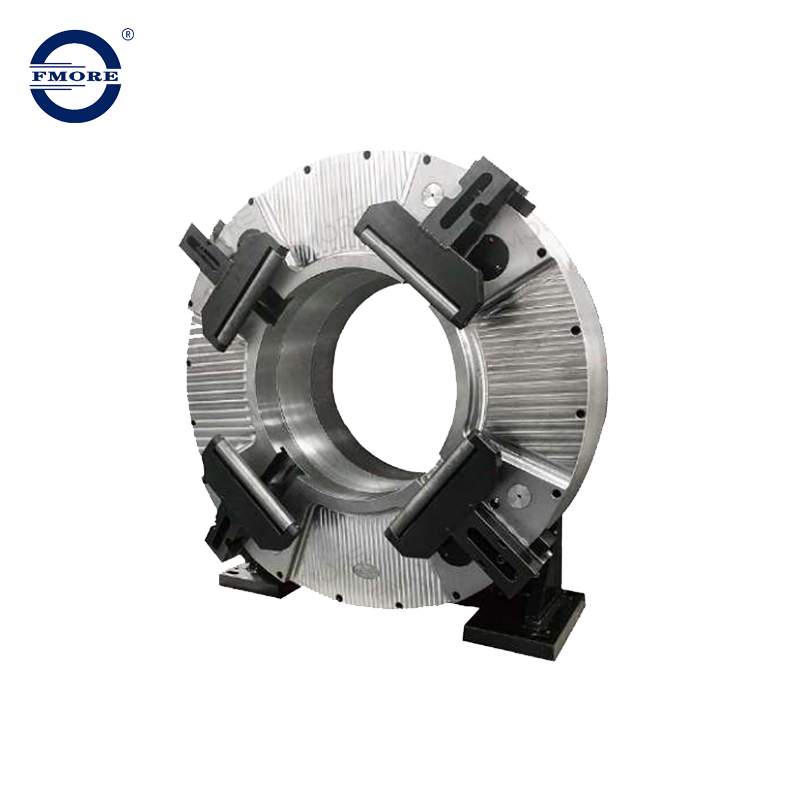

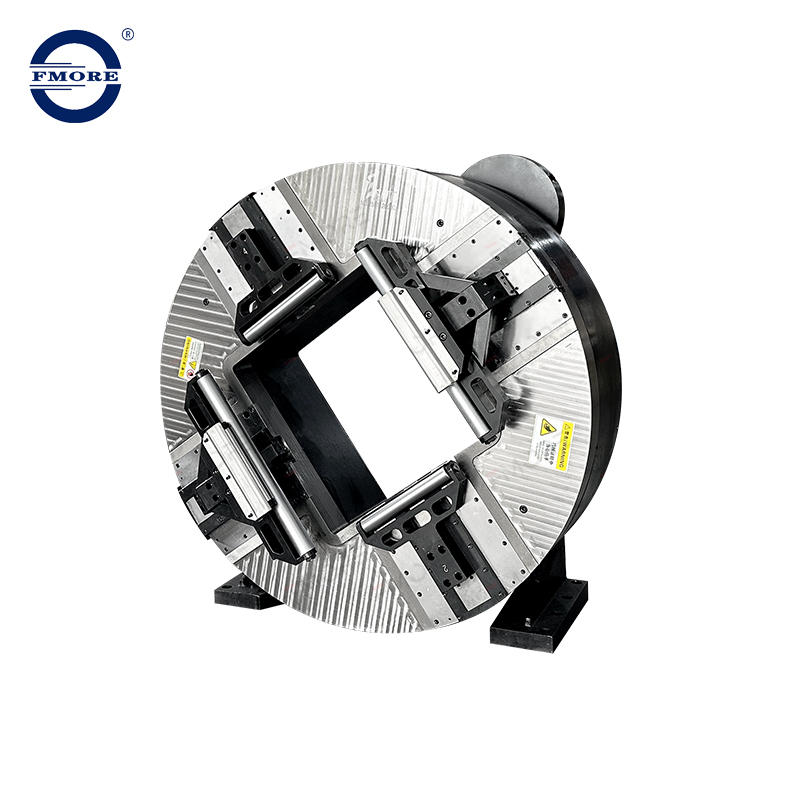

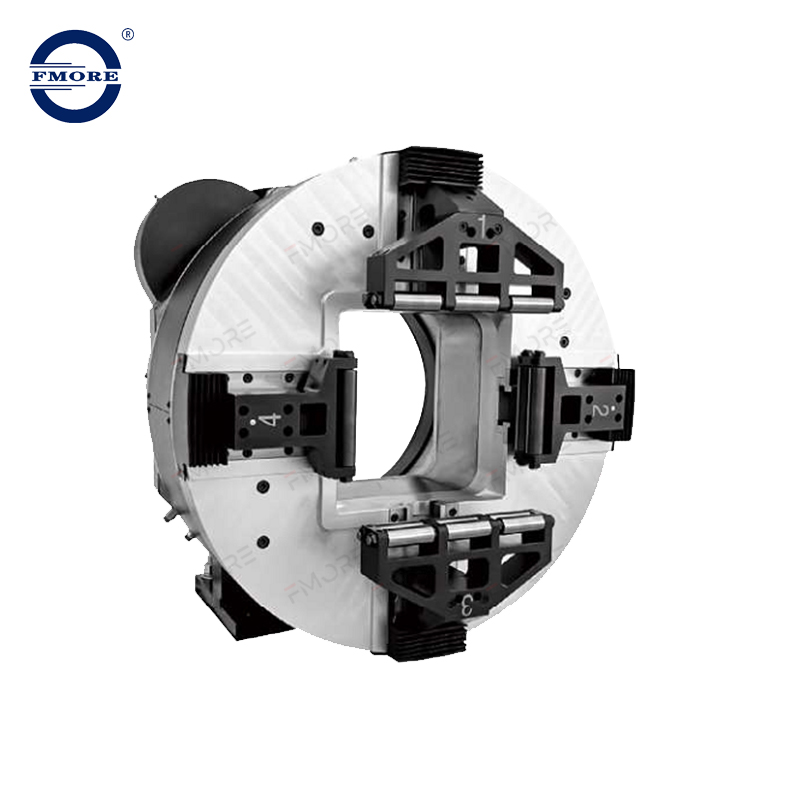

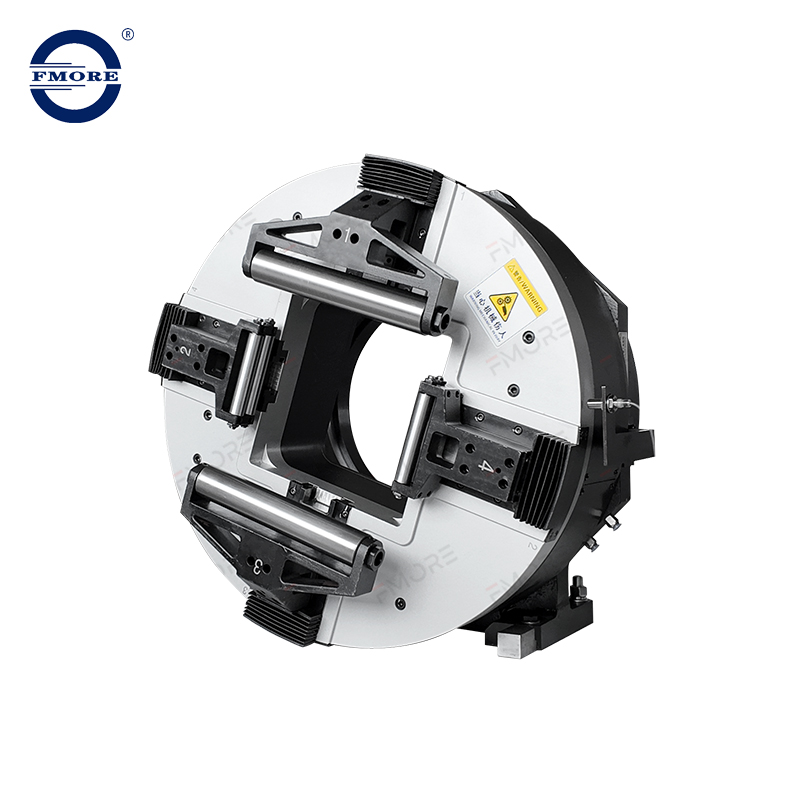

Laser Chuck

Base point positioning: Be convenient for the adjustment of the main equipment and greatly shortness the debugging time of the main equipment.

Claw release test: Greatly imporves the reliability of chuck safe operation

Full stroke design: No need to adjust the claw, easy clamping and centering, to achieve switching among different pipe diameters, which greatly saving clamping time. The clamping force is large, the clamping range is wide, the holding time is long (more than 8 hours) and the performance is stable.

Wide range of applications, diversification of processing profiles: It can process all kinds of materials with different diameters and styles, such as: round pipe, square pipe, rectangular pipe, O pipe, triangular pipe, H beam and channel steel, etc.

High repetitive positioning accuracy: Reasonable and reliable structure design, so as to easily meet customer’s high level accuracy requirements.

Low maintenance cost, long service life: All sliding parts are hardened and have good wear resistace. The sealing design of the guide groove of the sliding part claws is reliable, which improves the dust-proof performance. The lubrication design of sliding parts is adequate. Dynamic balance detection.

Multiple configurations are available: Solid or hollow, Comb-type or mortise-groove type claws. Keyway extension claw or roller claw. 2-claw, 3-claw, 4-claw,6-claw or abnomormal claw.
