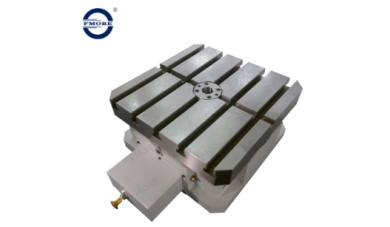

How Do You Choose The Right Rotary Table?

Choosing a rotary table looks simple at first: pick a diameter, confirm the mounting holes, and move on. But in real production, the “right rotary table” is the one that holds accuracy under load, indexes reliably at your required cycle time, and survives daily duty without drifting, overheating, or wearing prematurely. We often see customers who were satisfied in a low-speed prototype stage, then face vibration, positioning errors, or unexpected maintenance once production scales. The reason is usually not the table’s basic function—it’s the selection mismatch between load and inertia, required accuracy, duty cycle, and integration conditions.

From our perspective at YANTAI FORMORE MACHINERY CO., LTD., a rotary table should be selected like a production-critical component, not a generic accessory. The best results come from a structured approach: clarify the process type (machining, welding, assembly, inspection), define the workpiece and fixture mass, determine indexing precision and speed requirements, then choose the drive, bearing, and control package that matches the application. This guide walks through the practical decision points, including common mistakes to avoid, and a simple checklist you can use when preparing a request for quotation.

Step 1: Define Your Application Type and Motion Mode

Different processes demand very different rotary table behaviors, so we always start by clarifying what “rotation” actually means in your workflow. Continuous rotation is common in welding positioners, polishing, coating, or scanning inspection, where the part must turn smoothly while a tool, torch, or sensor maintains a stable working angle. In these applications, smoothness, speed stability, and load handling during continuous movement are usually more important than extremely tight stop accuracy. Indexing, on the other hand, is typical in multi-station assembly or machining cells. Here, the table rotates to a fixed angle, stops, and holds position rigidly while work is performed. That means repeatable stop positions, fast index time, and strong holding torque are critical.

It’s also important to separate CNC 4th-axis rotary tables from production indexing tables. A CNC rotary table is built for precision positioning and integration with machine control—often requiring high accuracy, rigidity, and stable feedback for coordinated machining. A production indexing table focuses more on robust cycles, high repeatability, and long service life in repetitive station-to-station workflows. The first decision is simple but decisive: Do you need continuous rotation, fixed-position indexing, or CNC axis control?

Step 2: Calculate the Real Load Including Fixtures and Off-Center Moments

Many selection mistakes happen because buyers only state the workpiece weight, but the rotary table “feels” the total mechanical load. In practice, you must include the workpiece mass, fixture and clamp mass, and any tooling mounted on the table. Just as important is the center of gravity (CG) location relative to the table center. A load that sits far from the center creates a large overturning moment that stresses bearings, increases deflection, and reduces accuracy—even if the total weight is within the rated capacity.

Dynamic conditions matter too. When the table accelerates and brakes, the effective load increases. That’s why we always ask customers to provide not only static weight, but also CG offset, the work envelope (diameter/height), and the duty cycle (cycles per hour). Moment load is the reason a rotary table can look “correct on paper” but fail early in real production: bearings wear faster, the table develops positional drift, and repeatability becomes unstable under load.

Step 3: Consider Inertia and Acceleration Needs

Rotary tables don’t just hold weight—they must rotate mass. For fast indexing lines, inertia often becomes more important than static load capacity. Two setups can weigh the same, but the one with a larger diameter fixture or farther CG distance will have much higher inertia, demanding more torque and more braking control. That’s why we recommend asking three key questions: How fast must the table index between stations? How often does it start and stop? Does the process require quick acceleration and precise braking?

High-inertia loads typically require stronger drive torque, a robust transmission system, better servo or control tuning, and sometimes a larger safety margin to avoid thermal stress. If inertia is underestimated, the table may overshoot stopping positions, struggle to settle quickly, heat up at high cycle rates, and wear components faster—especially in high-frequency indexing environments. In short, inertia determines whether your rotary table will feel “sharp and stable” in production, or gradually become a maintenance issue as speed and cycles increase.

Step 4: Set Your Accuracy and Repeatability Requirements

Accuracy needs differ by process:

• Machining: angular accuracy and rigidity directly affect tolerances

• Welding/assembly: repeatability is often more important than ultra-high accuracy

• Inspection: stable indexing points reduce measurement variability

Practical definitions

• Accuracy: how close the table stops to the intended angle

• Repeatability: how consistently it returns to the same angle

For most production lines, strong repeatability delivers stable results even if absolute accuracy is slightly less critical.

Step 5: Choose the Drive Type That Fits Your Control and Budget

Common drive options include:

Servo-driven rotary tables

Best for:

• flexible positioning (many angles)

• programmable speed profiles

• high precision and integration

Pneumatic indexing tables

Best for:

• simple fixed-angle indexing

• lower cost

• high-speed repetitive motion

Hydraulic rotary tables

Best for:

• heavy loads

• robust torque needs

• harsh environments

Gear, worm, or direct-drive considerations

• Worm gear can provide high torque but may have backlash if not designed properly.

• Direct drive offers excellent smoothness and precision but can be higher cost.

Step 6: Confirm Mounting Interface and Fixture Strategy

Selection should match your real installation environment:

• table mounting pattern and base rigidity

• fixture design and clamping approach

• access for maintenance

• guarding and safety interlocks

A rigid base and correct mounting prevent:

• distortion

• misalignment drift

• vibration under load

Step 7: Check Environmental and Duty Conditions

Real factories are not clean labs. Consider:

• coolant exposure (machining)

• welding spatter and heat

• dust and abrasive particles

• humidity and corrosion risk

• temperature variation

These factors influence:

• sealing design

• lubrication strategy

• material selection

• long-term accuracy stability

Step 8: Integration With Automation and Sensors

For automated lines, you may need:

• position sensors and confirmation signals

• interlock readiness for safety

• PLC integration

• cable management and slip ring needs (if continuous rotation with signals is required)

A rotary table that is “mechanically good” but difficult to integrate can slow commissioning and increase total project cost.

Step 9: Use a Simple Selection Checklist Before You Request Quotes

Here is a practical RFQ checklist you can send to suppliers:

When suppliers receive clear information, they can recommend the right model faster and more accurately.

Common Mistakes When Choosing a Rotary Table

• Selecting by diameter only
  A larger diameter does not automatically mean better load handling or accuracy.

• Ignoring fixture weight and CG offset
  Fixtures often weigh as much as the part, and offset loads create high moment stress.

• Underestimating duty cycle
  High-frequency indexing needs robust thermal and mechanical design.

• Focusing on accuracy but ignoring rigidity
  For machining, rigidity under load is as important as angular accuracy.

• Skipping integration planning
  Sensors, cabling, guards, and controls should be considered early.

Final Thoughts

To choose the right rotary table, you need more than a size and a price. You need a table that matches your load and center-of-gravity conditions, delivers the accuracy and repeatability your process requires, and indexes reliably at your cycle time without overheating or wearing prematurely. The best selection process is structured: define motion type, calculate load and inertia, set accuracy targets, choose the appropriate drive and control method, and confirm mounting and environmental conditions. When these elements align, a rotary table becomes a long-term productivity asset rather than a frequent maintenance concern.

At YANTAI FORMORE MACHINERY CO., LTD., we support customers in selecting rotary table solutions for CNC machining and automation lines based on real working conditions. If you want help choosing the right rotary table for your part size, fixture design, and cycle targets, you are welcome to contact us to discuss your application and get practical recommendations.

FAQ

1) How do I choose the right rotary table size?

Start with load and moment (part + fixture weight and CG offset), then confirm table diameter and mounting interface. Size alone is not enough without load analysis.

2) What matters more, rotary table accuracy or repeatability?

For many production applications, repeatability matters more because it ensures consistent results cycle after cycle. Machining applications often require both.

3) How does duty cycle affect rotary table selection?

High-frequency indexing increases heat and wear. A table must be designed for the required cycles per hour, acceleration, and braking without losing accuracy.

4) Which drive type is best for a rotary table?

Servo drives offer flexible positioning and high precision; pneumatic indexing works well for fixed-angle high-speed cycles; hydraulic drives handle heavy loads and harsh conditions. The best choice depends on your process.
