How Accurate Are Rotary Tables?

A Rotary Table plays a critical role in modern machining by enabling precise angular positioning and controlled rotational movement of a workpiece. Whether used on a conventional milling machine or integrated into a CNC machining center, the accuracy of a rotary table directly influences machining quality, efficiency, and repeatability.

As manufacturing industries continue to demand tighter tolerances, complex geometries, and higher production efficiency, rotary table accuracy has become a key performance factor. Even small angular errors can result in dimensional inaccuracies, poor surface finish, assembly problems, or increased scrap rates. For this reason, understanding how accurate rotary tables are—and what affects that accuracy—is essential for engineers, machinists, and production managers.

This article provides a comprehensive explanation of rotary table accuracy, including how accuracy is defined, what factors influence it, how different types of rotary tables compare, and how accuracy impacts real machining results. It also offers guidance on maintaining accuracy and selecting the right rotary table for specific machining requirements.

What Does Accuracy Mean for a Rotary Table?

Before discussing how accurate rotary tables are, it is important to clearly define what “accuracy” means in the context of a rotary table. Accuracy is not a single measurement, but a combination of several related performance characteristics.

Positioning Accuracy of a Rotary Table

Positioning accuracy refers to how closely the rotary table can move to a commanded angular position. For example, if a CNC system commands the rotary table to rotate to 90 degrees, positioning accuracy describes how close the actual position is to that exact angle.

High positioning accuracy is critical in applications such as:

Bolt circle drilling

Multi-face machining

Precision indexing operations

Poor positioning accuracy can lead to angular deviations that accumulate across multiple operations, resulting in out-of-tolerance parts.

Repeatability and Indexing Accuracy

Repeatability measures the rotary table’s ability to return to the same angular position repeatedly under identical conditions. Even if a rotary table does not have perfect absolute accuracy, high repeatability can still produce consistent results in production environments.

Indexing accuracy specifically refers to the accuracy of step-by-step angular movements when the table indexes from one position to another. This is particularly important for operations involving evenly spaced features, such as gears or flanges.

Accuracy vs Precision vs Resolution

These three terms are often confused but have distinct meanings:

• Accuracy: How close the actual position is to the target position

• Precision (repeatability): How consistently the table returns to the same position

• Resolution: The smallest incremental movement the rotary table can achieve

Understanding these differences is essential when evaluating rotary table specifications and matching them to application requirements.

Key Factors That Affect Rotary Table Accuracy

The accuracy of a Rotary Table is influenced by multiple mechanical, structural, and control-related factors. These elements work together to determine overall performance.

Drive System and Transmission Design

The drive system is one of the most significant contributors to rotary table accuracy.

Common drive systems include:

Worm gear and worm wheel systems

Gear-driven systems

Direct-drive (torque motor) systems

Worm gear systems are widely used due to their high reduction ratios and self-locking characteristics. However, backlash in the gear mesh can affect positioning accuracy if not properly compensated.

Direct-drive systems eliminate mechanical transmission components, reducing backlash and improving accuracy, but they are typically more expensive.

Bearing Quality and Load Capacity

Bearings support the rotating table and maintain smooth, stable motion. High-quality bearings minimize friction, vibration, and axial or radial play.

Accuracy can degrade if:

Bearings are overloaded

Load capacity is exceeded

Bearing wear occurs over time

Selecting a rotary table with adequate load capacity for the workpiece and cutting forces is essential for maintaining accuracy.

Manufacturing Quality and Assembly Tolerance

The overall manufacturing quality of a rotary table—including machining precision, component fit, and assembly process—directly affects accuracy.

High-precision rotary tables require:

Tight machining tolerances

Careful assembly

Rigorous inspection and testing

Even small deviations during assembly can result in cumulative positioning errors.

Clamping and Locking Mechanism

During machining, especially under heavy cutting conditions, the rotary table must remain rigidly fixed at the target angle.

Effective clamping and locking mechanisms:

Prevent micro-movements

Increase rigidity

Improve surface finish

Inadequate locking can cause angular drift during cutting, reducing accuracy.

CNC Control and Feedback System

In CNC rotary tables, the control system and feedback devices play a critical role.

Key components include:

Servo motors

Encoders or feedback sensors

CNC control algorithms

High-resolution encoders and advanced control systems enable precise positioning and compensation for mechanical errors, significantly improving overall accuracy.

Accuracy Levels of Different Types of Rotary Tables

Different types of rotary tables offer varying levels of accuracy based on their design, drive system, and control method.

Manual Rotary Table Accuracy

Manual rotary tables rely on handwheels and mechanical scales for positioning.

Typical characteristics:

Lower positioning accuracy

Operator-dependent results

Suitable for low-volume or non-critical machining

Manual rotary tables can be accurate enough for basic applications but are generally not suitable for high-precision or high-repeatability requirements.

Motorized Rotary Table Accuracy

Motorized rotary tables use electric motors to drive rotation but may lack full CNC integration.

Compared to manual tables, they offer:

Improved consistency

Better control of rotation speed

Moderate positioning accuracy

They are suitable for medium-precision production environments.

CNC Rotary Table Accuracy

CNC Rotary Tables provide significantly higher accuracy due to servo control and feedback systems.

Advantages include:

Precise angular positioning

High repeatability

Integration with CNC machining programs

CNC rotary tables are commonly used in four-axis and five-axis machining centers where accuracy is critical.

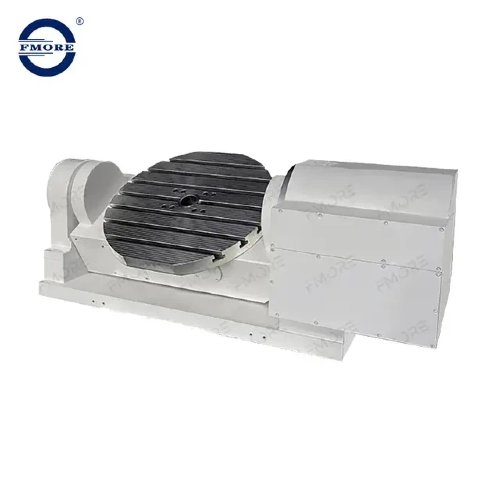

Tilting Rotary Table Accuracy Considerations

Tilting rotary tables introduce an additional axis of motion, increasing system complexity.

Accuracy depends on:

Calibration of both rotary and tilt axes

Mechanical rigidity

Control system capability

While tilting rotary tables enable advanced machining, maintaining accuracy requires careful setup and calibration.

Typical Accuracy Specifications of Rotary Tables

The table below shows general accuracy ranges for different rotary table types. Actual specifications vary by manufacturer and model.

How Rotary Table Accuracy Affects Machining Results

The accuracy of a rotary table has a direct and measurable impact on machining outcomes.

Impact on Part Dimensional Accuracy

Angular positioning errors can lead to:

Misaligned features

Incorrect hole spacing

Dimensional variation across parts

In multi-sided machining, small angular errors can accumulate, resulting in significant deviations.

Surface Finish and Tool Life

Smooth, accurate rotation contributes to:

Consistent cutting engagement

Reduced vibration

Improved surface finish

Inaccurate or unstable rotation increases tool wear and can negatively affect surface quality.

Productivity and Scrap Rate

Higher rotary table accuracy leads to:

Fewer rejected parts

Reduced rework

Improved production efficiency

In high-volume manufacturing, even small improvements in accuracy can result in significant cost savings.

How to Maintain and Improve Rotary Table Accuracy

Maintaining rotary table accuracy requires proper installation, regular maintenance, and periodic inspection.

Proper Installation and Alignment

Accurate installation is the foundation of rotary table performance.

Key considerations include:

Flat and clean mounting surfaces

Correct alignment with machine axes

Proper torque on mounting bolts

Poor installation can negate even the best rotary table design.

Regular Maintenance and Lubrication

Routine maintenance helps prevent wear-related accuracy loss.

Maintenance practices include:

Lubricating gears and bearings

Inspecting locking mechanisms

Checking for abnormal noise or vibration

Consistent maintenance extends service life and preserves accuracy.

Calibration and Testing

Periodic calibration ensures that the rotary table maintains its specified accuracy.

Calibration methods may include:

Dial indicator testing

Laser measurement systems

CNC diagnostic routines

Regular testing allows early detection of accuracy degradation.

Choosing the Right Rotary Table Based on Accuracy Requirements

Selecting a rotary table involves balancing accuracy needs with cost and application requirements.

Matching Accuracy to Application Needs

Not all applications require ultra-high accuracy. Selecting a rotary table with appropriate accuracy avoids unnecessary cost while meeting production requirements.

Accuracy vs Cost Considerations

Higher accuracy typically involves:

Advanced drive systems

Better bearings

More sophisticated controls

Evaluating total cost of ownership—including productivity and scrap reduction—is essential.

Compatibility with CNC Systems

For CNC applications, the rotary table must be fully compatible with the machine’s control system and feedback requirements to achieve optimal accuracy.

Conclusion

A Rotary Table can deliver a wide range of accuracy levels depending on its structural design, drive system, and control technology. From manual rotary tables designed for basic machining tasks to high-end CNC rotary tables capable of ultra-precise positioning, accuracy plays a decisive role in overall machining performance, part quality, and production efficiency.

By understanding the key factors that influence rotary table accuracy—such as transmission design, bearing quality, load conditions, and control systems—manufacturers can make well-informed decisions, optimize machining processes, and consistently achieve high-quality results. As machining applications continue to evolve toward tighter tolerances, greater complexity, and higher automation, the demand for reliable and accurate rotary tables will only continue to grow.

At YANTAI FORMORE MACHINERY CO., LTD., we focus on providing rotary table solutions that balance precision, stability, and efficiency for a wide range of machining applications. With solid technical expertise and a commitment to quality, we work closely with our customers to help them select the most suitable rotary table for their specific accuracy requirements. We welcome you to contact us to learn more about our rotary table solutions and how we can support your precision manufacturing goals.

FAQ

How accurate are CNC rotary tables?

CNC rotary tables typically achieve positioning accuracy of ±5–10 arc seconds, with high-end models reaching ±2–5 arc seconds.

Are manual rotary tables accurate enough for precision machining?

Manual rotary tables can be suitable for basic or low-precision tasks but are not ideal for high-accuracy or high-repeatability applications.

What factors affect rotary table accuracy the most?

Drive system design, bearing quality, load conditions, and CNC control systems are the most critical factors.

Can rotary table accuracy be maintained over time?

Yes, with proper installation, regular maintenance, and periodic calibration, accuracy can be preserved.

How do I choose the right rotary table accuracy level?

Selection should be based on part tolerances, machining complexity, production volume, and overall manufacturing goals.
