Can A Steady Rest Improve Your Milling Machine Accuracy?

Introduction

In any milling operation, precision is key. Even slight inaccuracies can lead to major issues. So, how can you ensure top-notch accuracy?

One solution is a steady rest. It plays a critical role in stabilizing workpieces, especially long or flexible ones.

In this article, we’ll explore how a steady rest, including a CNC steady rest, can improve milling machine accuracy. You'll learn how this tool enhances stability and precision, leading to better results.

Understanding Steady Rests and Their Role in Milling

What is a Steady Rest?

A steady rest is a mechanical support system used in turning and milling operations to stabilize the workpiece. It's designed to support long, slender, or flexible parts during machining. By preventing unnecessary movement, the steady rest ensures that the workpiece remains securely positioned while the milling process takes place.

Key components of a steady rest include the base, adjustable jaws, and clamping mechanisms. The base is typically mounted onto the machine bed, while the jaws adjust to the workpiece’s diameter. When properly set up, the steady rest secures the workpiece in place, helping to maintain the desired accuracy throughout the operation.

How Does a Steady Rest Work in Milling?

In milling, vibrations and deflections can significantly impact the final product's accuracy. The steady rest works by minimizing these effects, particularly when machining longer or more flexible workpieces. Without it, workpieces can bend or vibrate during milling, leading to dimensional inaccuracies.

By providing support at key points along the workpiece, a steady rest prevents bending and shifting. This ensures the milling tool maintains a stable cutting path, resulting in smoother and more consistent machining operations.

Types of Steady Rests Used in Milling Machines

There are several types of steady rests available for milling machines, each serving a specific purpose:

● Fixed Steady Rest: Mounted directly onto the machine bed, this steady rest provides consistent support for workpieces that don’t require frequent adjustments.

● Adjustable Steady Rest: This type can accommodate varying workpiece sizes, allowing for more flexibility in milling operations.

● Follow Rest: A movable steady rest that follows the workpiece as it rotates. This option is ideal for long workpieces requiring dynamic support.

Each of these steady rests offers unique advantages, depending on the specific requirements of the milling task.

How Steady Rests Improve Milling Machine Accuracy

Stabilizing the Workpiece

One of the key benefits of using a steady rest is its ability to stabilize the workpiece during milling. When machining long, slender parts, deflection and bending are common issues. The steady rest provides additional support, preventing these problems and ensuring the workpiece remains firmly in place. This support translates into higher precision, as the workpiece remains centered throughout the milling process.

For instance, in the production of precision shafts or medical devices, where every micron counts, the stability provided by the steady rest is crucial for maintaining the correct dimensions.

Reducing Vibrations and Chatter

Vibrations and chatter can drastically reduce the quality of a machined surface. In milling, these vibrations often occur due to the cutting forces acting on the workpiece. By stabilizing the workpiece, a steady rest reduces these vibrations, resulting in a smoother surface finish.

For high-speed machining, the steady rest helps dampen vibrations, allowing the milling machine to operate at faster speeds without sacrificing accuracy. This results in a better surface finish and reduces the likelihood of tool wear.

Supporting High-Speed Machining

Milling machines are often required to operate at high speeds to increase productivity. However, these high speeds can lead to increased vibrations and deflection in the workpiece, compromising accuracy. The steady rest helps mitigate these issues, enabling high-speed operations without negatively affecting the machining precision.

By providing a stable support system, the steady rest allows the milling tool to maintain consistent engagement with the workpiece, leading to more accurate cuts and longer tool life.

Operational Benefits of Steady Rests

Time and Cost Efficiency

Implementing a steady rest can lead to faster setups and fewer errors during machining, ultimately improving overall time and cost efficiency. By ensuring that the workpiece remains steady, there’s less need for constant re-centering or re-adjustment during the operation. This leads to more consistent output and reduced downtime.

In addition, the ability to perform high-speed machining without sacrificing accuracy can help improve throughput, allowing businesses to produce more parts in less time.

Improving Safety in High-Speed Operations

Machining operations often involve high-speed cutting, which can pose a safety risk if the workpiece isn’t properly stabilized. Without a steady rest, workpieces are more likely to shift or vibrate, leading to potential accidents or tool breakage.

The steady rest plays a key role in improving operator safety by securing the workpiece and minimizing movement during high-speed operations. This added stability not only enhances precision but also reduces the risk of accidents, creating a safer working environment.

Enhancing the Lifespan of Milling Tools

A steady rest’s ability to stabilize the workpiece also extends the lifespan of milling tools. When workpieces vibrate or deflect, it can lead to uneven cutting forces, accelerating tool wear. By ensuring consistent and stable support, the steady rest minimizes these issues, allowing the tool to maintain sharpness for longer.

The result is fewer tool changes, reduced maintenance costs, and better overall efficiency.

Types of Steady Rests for CNC Milling Machines

CNC-Specific Steady Rests

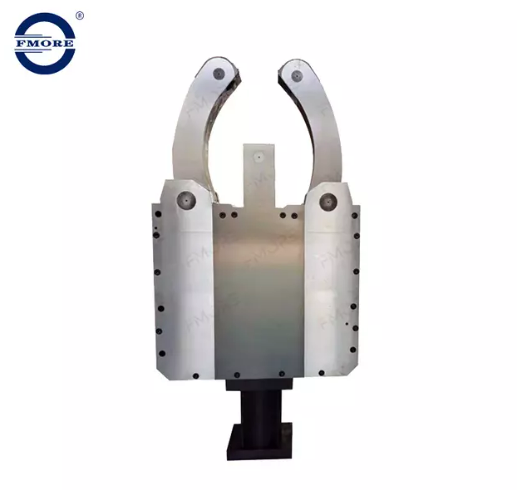

CNC milling machines, known for their precision and automated capabilities, benefit significantly from CNC-specific steady rests. These steady rests are designed to work seamlessly with CNC systems, often featuring self-centering jaws and hydraulic clamping mechanisms. These features allow for quick setup and automatic adjustments, ensuring that the workpiece remains precisely centered during machining.

Using a CNC steady rest in combination with a high-precision CNC machine further enhances the overall machining accuracy, making it ideal for industries that require tight tolerances.

Choosing the Right Steady Rest for Your Milling Machine

When selecting a steady rest for your CNC milling machine, it's essential to consider the workpiece size, machine type, and the specific requirements of your milling task. For smaller, more flexible workpieces, a self-centering steady rest is often the best choice, as it ensures quick and easy centering without manual intervention.

For larger or heavier workpieces, consider a hydraulic steady rest that can handle higher loads and offer better control over the clamping process.

Potential Challenges and Considerations

Limitations of Steady Rests in Milling Operations

While steady rests offer numerous benefits, they also come with certain limitations. The setup process can sometimes be more time-consuming, particularly with adjustable or hydraulic steady rests. Additionally, the steady rest may interfere with certain machining tools or setups, limiting its applicability in some scenarios.

It's important to evaluate the specific needs of your milling operations and determine whether the steady rest is necessary for your specific tasks.

Maintenance and Longevity of Steady Rests

To maintain the performance of your steady rest, regular inspection and maintenance are essential. Lubricating the adjustable components, checking for wear and tear, and replacing damaged parts can help extend the life of the steady rest and ensure it continues to function as intended.

By proactively maintaining your steady rest, you can avoid costly repairs or replacements and ensure its reliability over the long term.

Conclusion

A steady rest is essential for improving milling machine accuracy. It stabilizes the workpiece, reduces vibrations, and supports high-speed operations. This leads to better precision, cost savings, and enhanced tool life. When choosing a steady rest, consider the workpiece size and machine type. Regular maintenance ensures the steady rest continues to provide reliable performance, helping businesses achieve high-quality results.

Yantai Formore Machinery Co., Ltd. offers steady rests that enhance precision and efficiency in milling operations, delivering value through durable and reliable products.

FAQ

Q: What is a Steady Rest and how does it improve milling machine accuracy?

A: A steady rest is a device used to stabilize long or flexible workpieces during milling. It prevents deflection, reduces vibrations, and ensures a more accurate machining process.

Q: How does a CNC Steady Rest differ from a regular steady rest?

A: A CNC steady rest is specifically designed for CNC machines, offering automatic adjustments and hydraulic clamping. It ensures precise workpiece stabilization during high-speed operations.

Q: Why should I use a Steady Rest in my milling machine operations?

A: Using a steady rest helps reduce workpiece deflection and vibrations, improving precision and surface quality while reducing tool wear and operating costs.

Q: How do steady rests contribute to cost efficiency?

A: Steady rests reduce setup times, minimize errors, and extend tool life, leading to fewer reworks and enhanced overall productivity, thus lowering operational costs.

Q: Can a steady rest improve milling accuracy at high speeds?

A: Yes, a steady rest provides stability to the workpiece, preventing unwanted movement during high-speed milling, ensuring consistent accuracy and better results.
